At a Glance

Package dimension 290mm x 190mm x 210mm - 8.5kg
Self-priming vane pump
integrated by-pass valve
integrated stainless steel filter
flow rate 70 l/min
input/output DN25 (1”) F BSP
suitable for use with diesel fuel
continuous duty design.

GO Data Sheet PUMP 240V AC 100lpm PA2 150lpm PA3

GO Data Sheet PUMP 240V AC PA1 PA2 PA3 Detailed

GO Manual Adam Piusi PA2 PA3

240V AC - 2.4 amp
Package dimension 290mm x 190mm x 210mm - 8.5kg
Self-priming vane pump
cast iron body
sintered steel impeller
acetal resin vanes
integrated by-pass valve
integrated stainless steel filter
easily accessible ON-OFF switch,
self-ventilated single phase motor
IP55 protection
class F insulation
thermal overload protection engineered into the electric motor
flow rate 70 l/min
input/output DN25 (1”) F BSP
suitable for use with diesel fuel
continuous duty design.

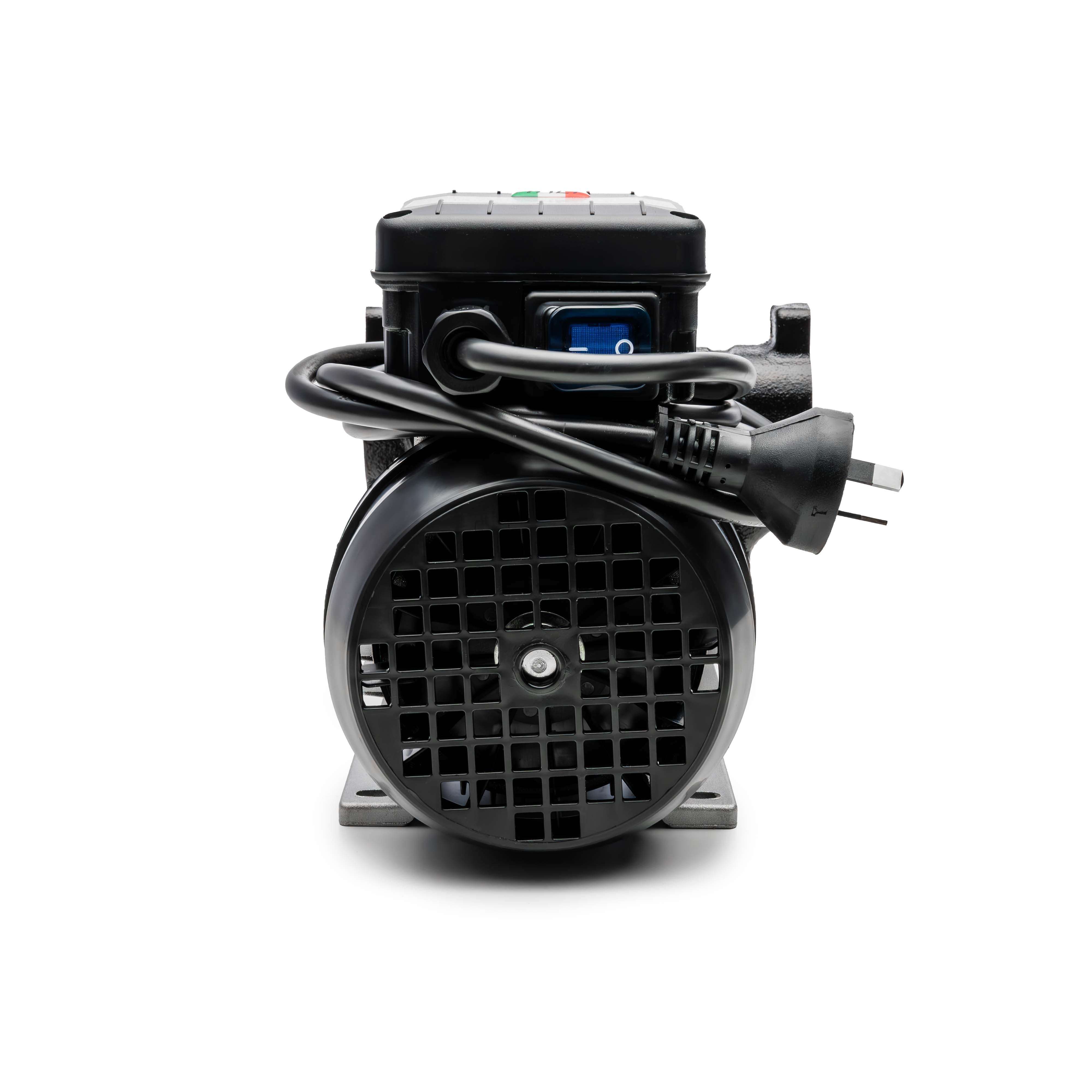

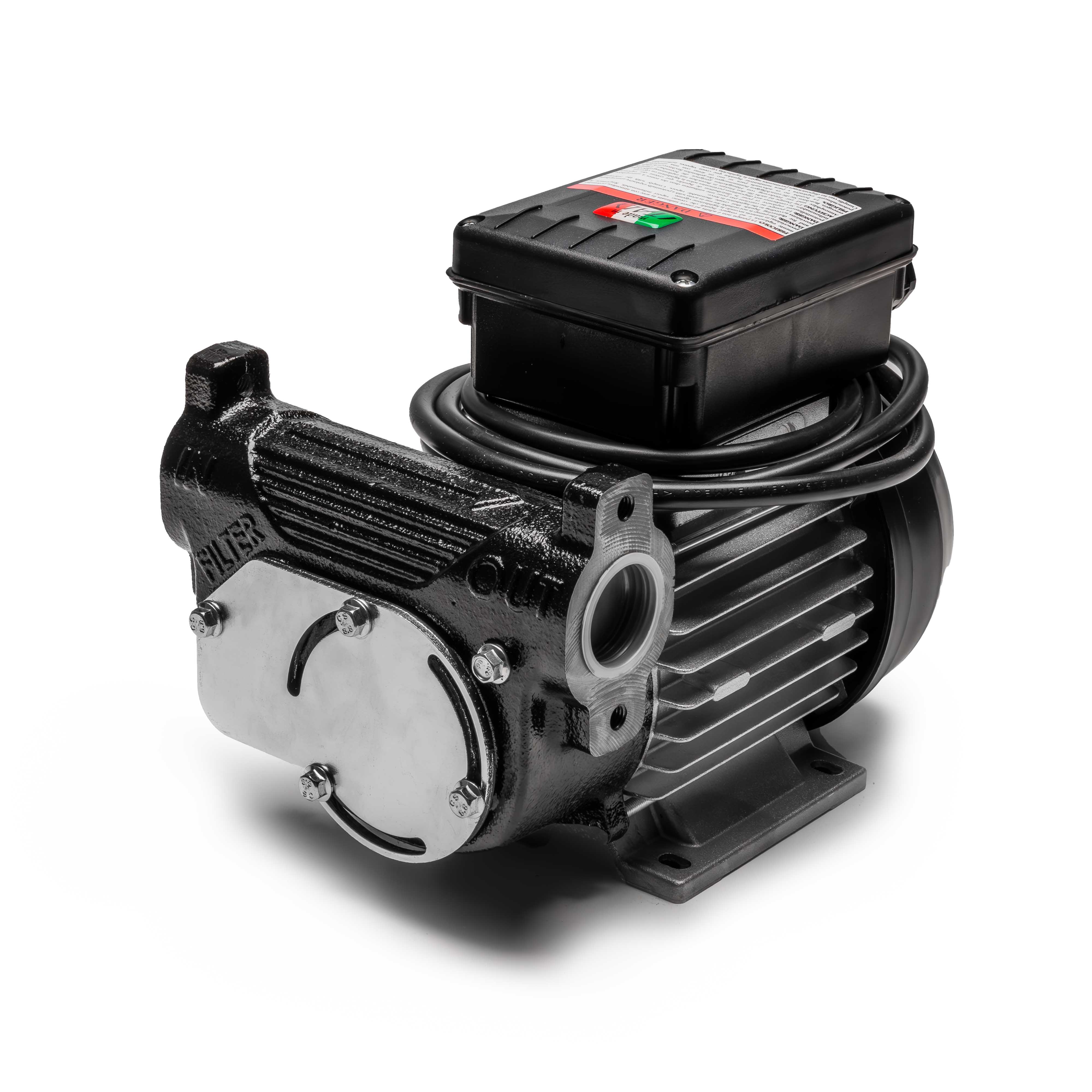

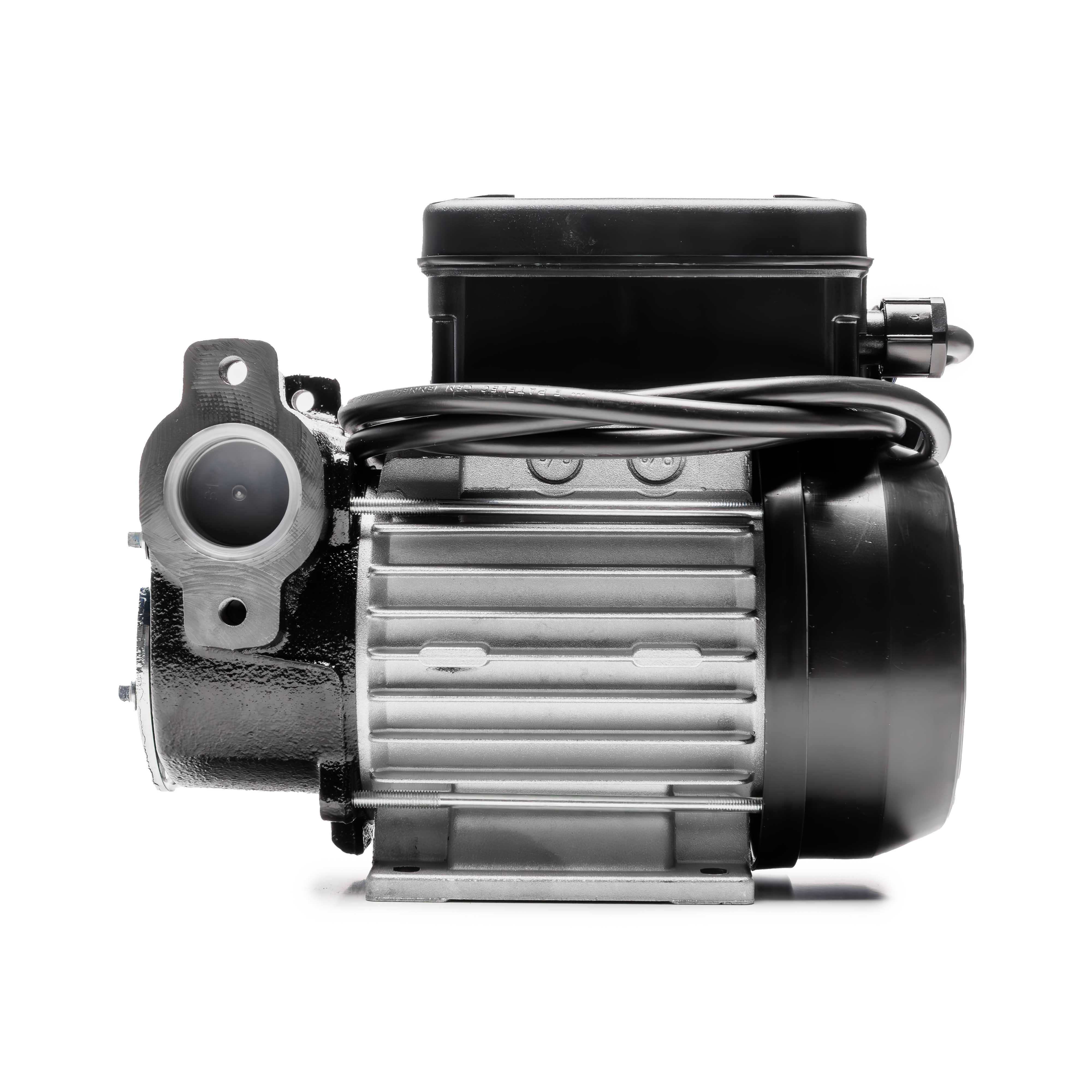

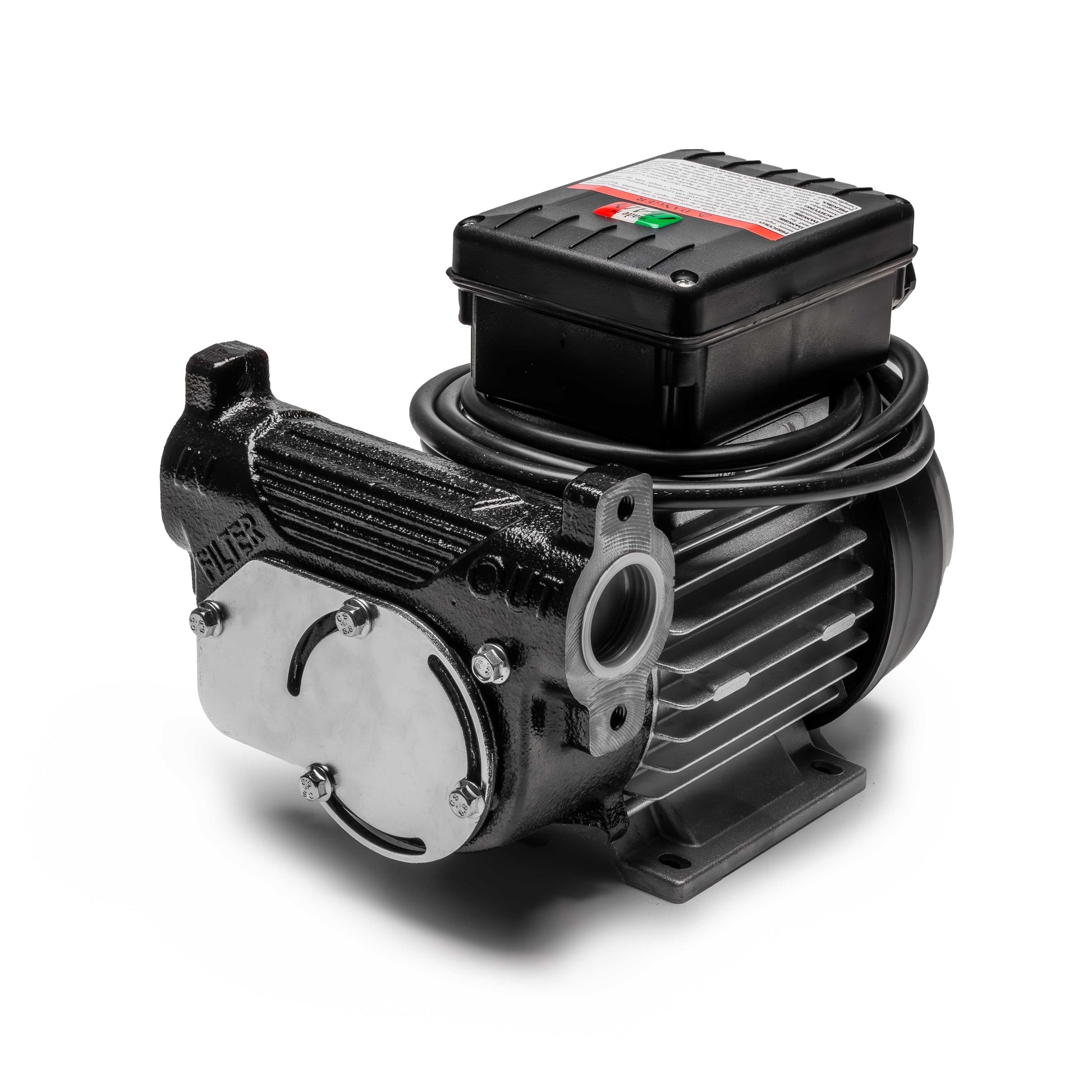

PUMP 240V AC 70lpm PA1

Name: PUMP 240V AC 70lpm PA1
Brand: Adam Pumps spa
SKU: PA7Z00AUS
Price: 519.0 NZD
Availability: InStock

SKU: PA7Z00AUS

PUMP 240V AC 70lpm PA1

$519.00 NZD

Save $0

Sold out

Inclusive of GST.

Product variants

Quantity

Other payment options

The Basics

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the PA1 240V 70lpm Pump, from GO Industrial, features a self-ventilated single phase, continuous duty motor with IP55 protection, class F insulation and thermal overload protection engineered into the electric motor.
