  • GO Data Sheet Adam by Piusi Filter FT10XA

Specifications

Filter type Particulate + Water removal
Efficiency [um] 30
Flow [l/min] 100
Max pressure [bar] 14
Temperature [°C] -20/+110
Sealing NBR
Fluid Compatibility diesel, light lubricants,
Thread DN32 (1-1/4") BSP Female Inlet and Outlet
Package Size 220mm L x 150mm W x 220mm H - 1.3kg

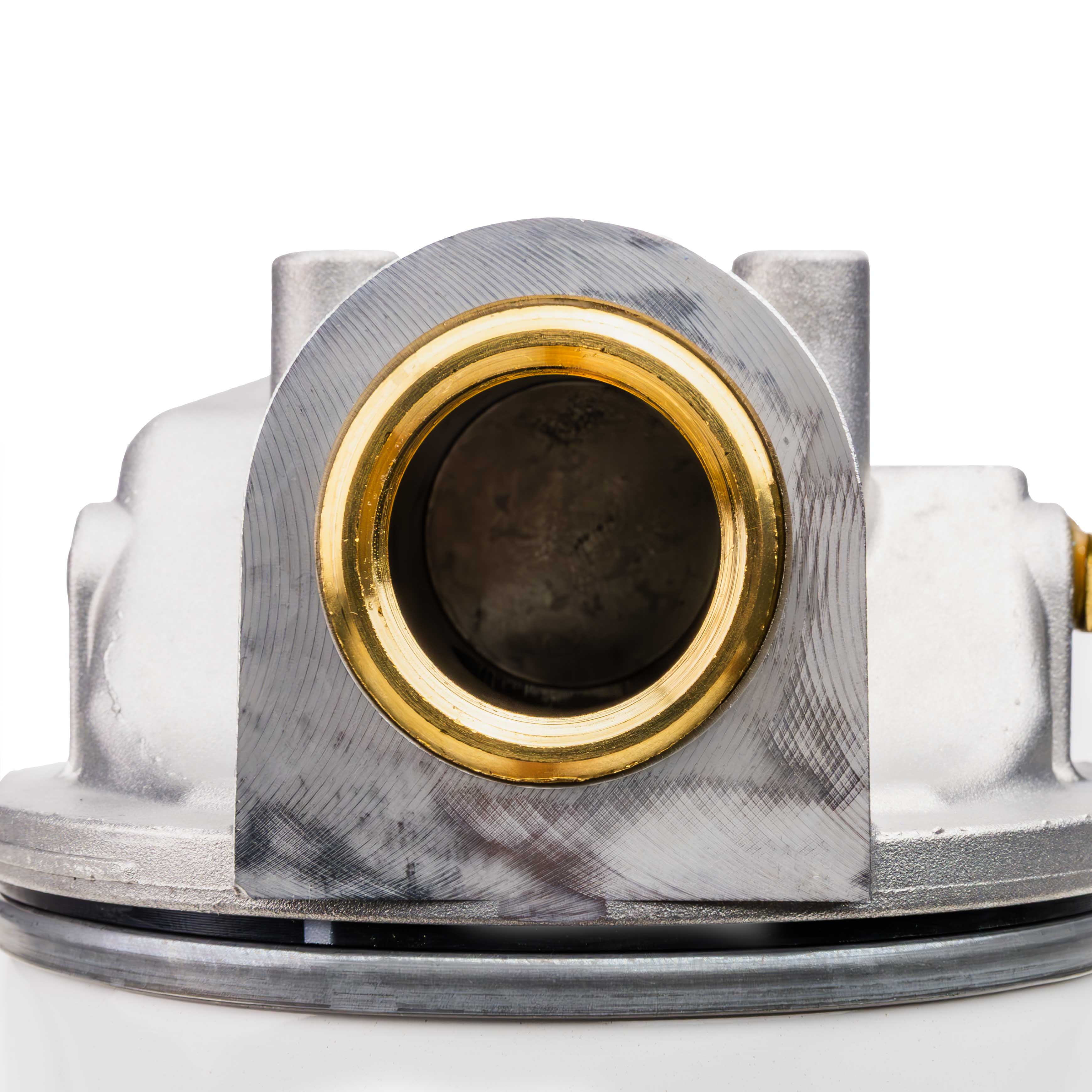

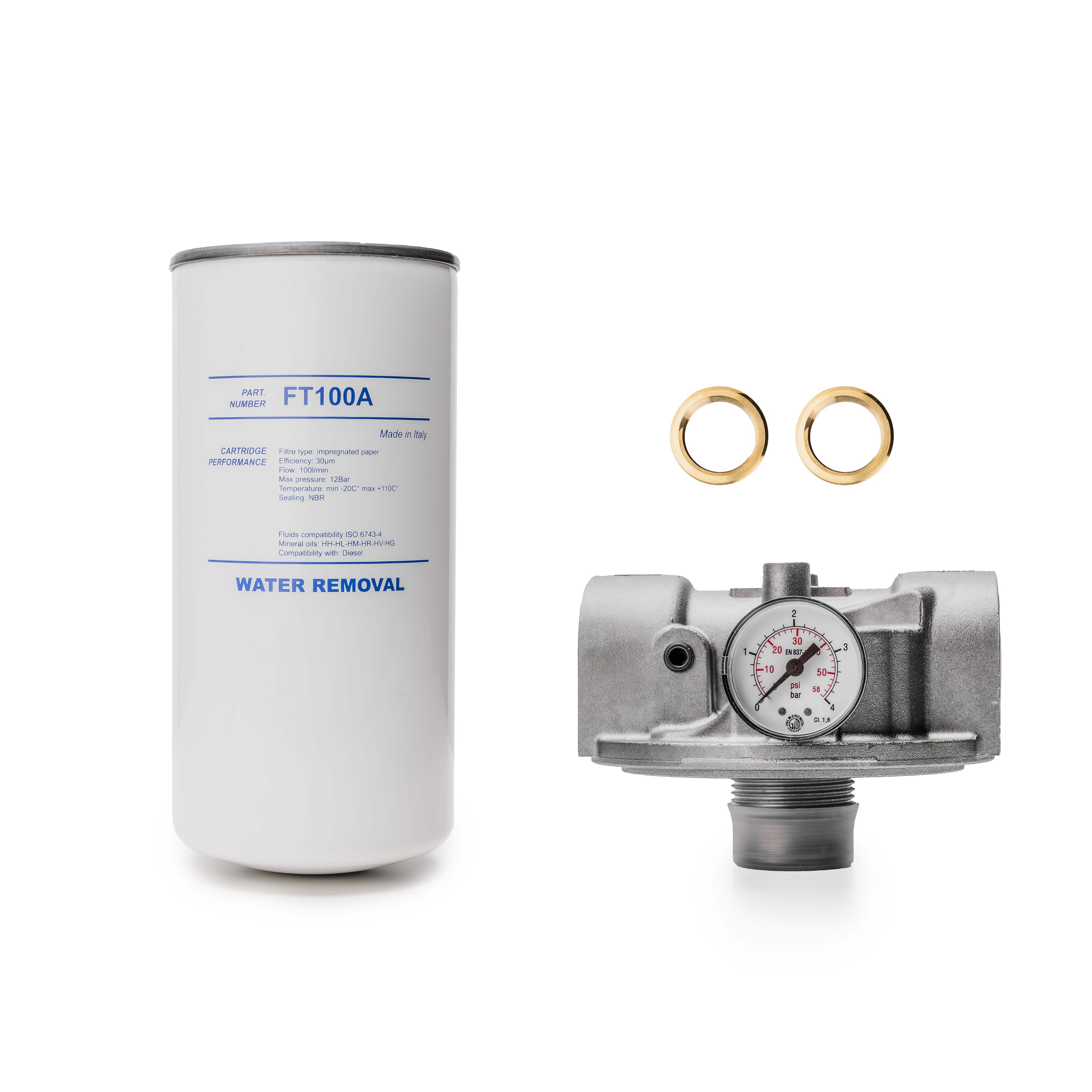

    • DN32 (1-1/4") BSP Female Inlet and Outlet supplied with DN25 (1") BSP Female Reducing Inserts
    • 30um Particulate and Water Removal
    • Flow Direction Cast on the Housing

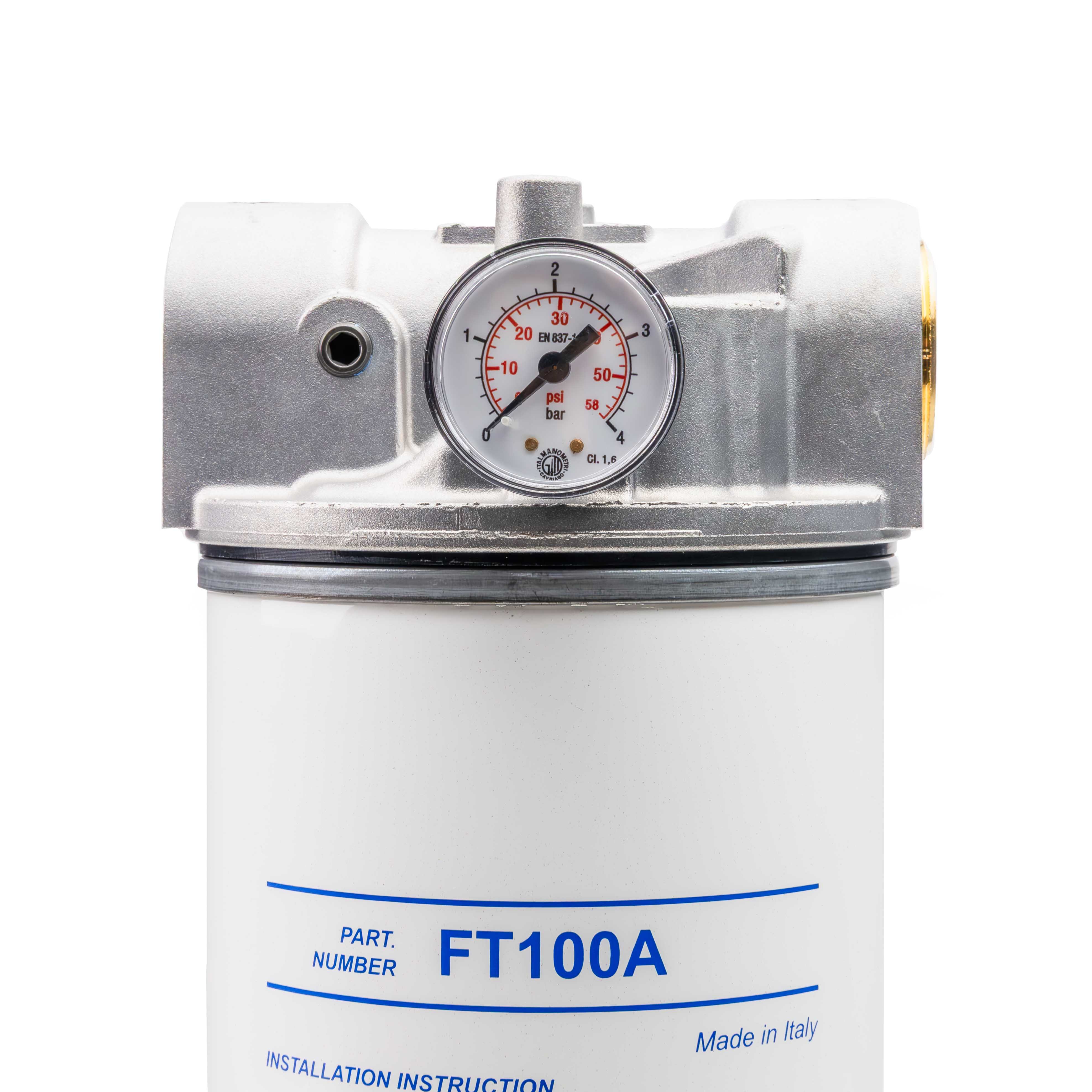

    • Saturation Level Indicator Pressure Gauge
    • Flow Rate up to 100lpm
    • Package Size 220mm L x 150mm W x 220mm H - 1.3kg
    • Suitable for use with Diesel

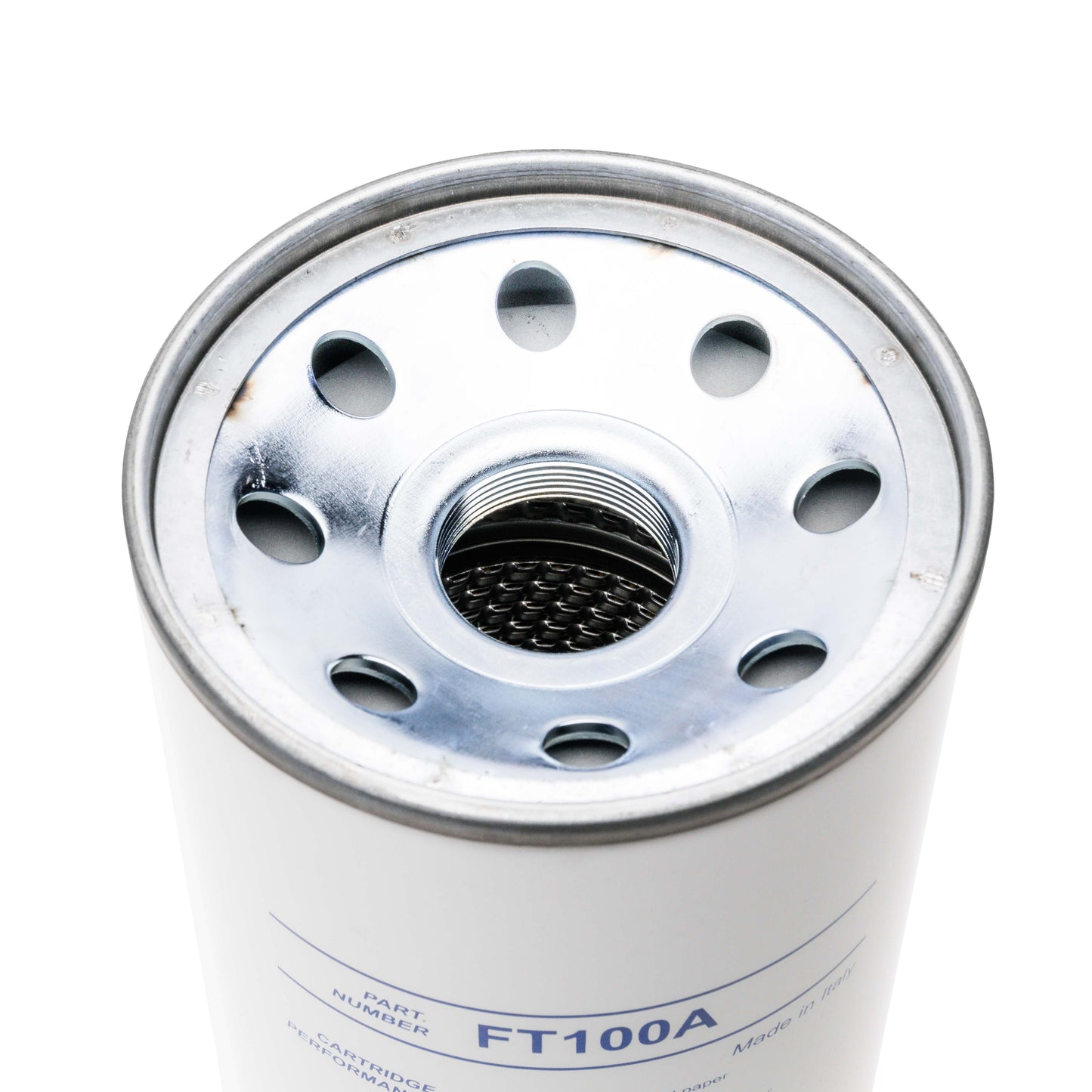

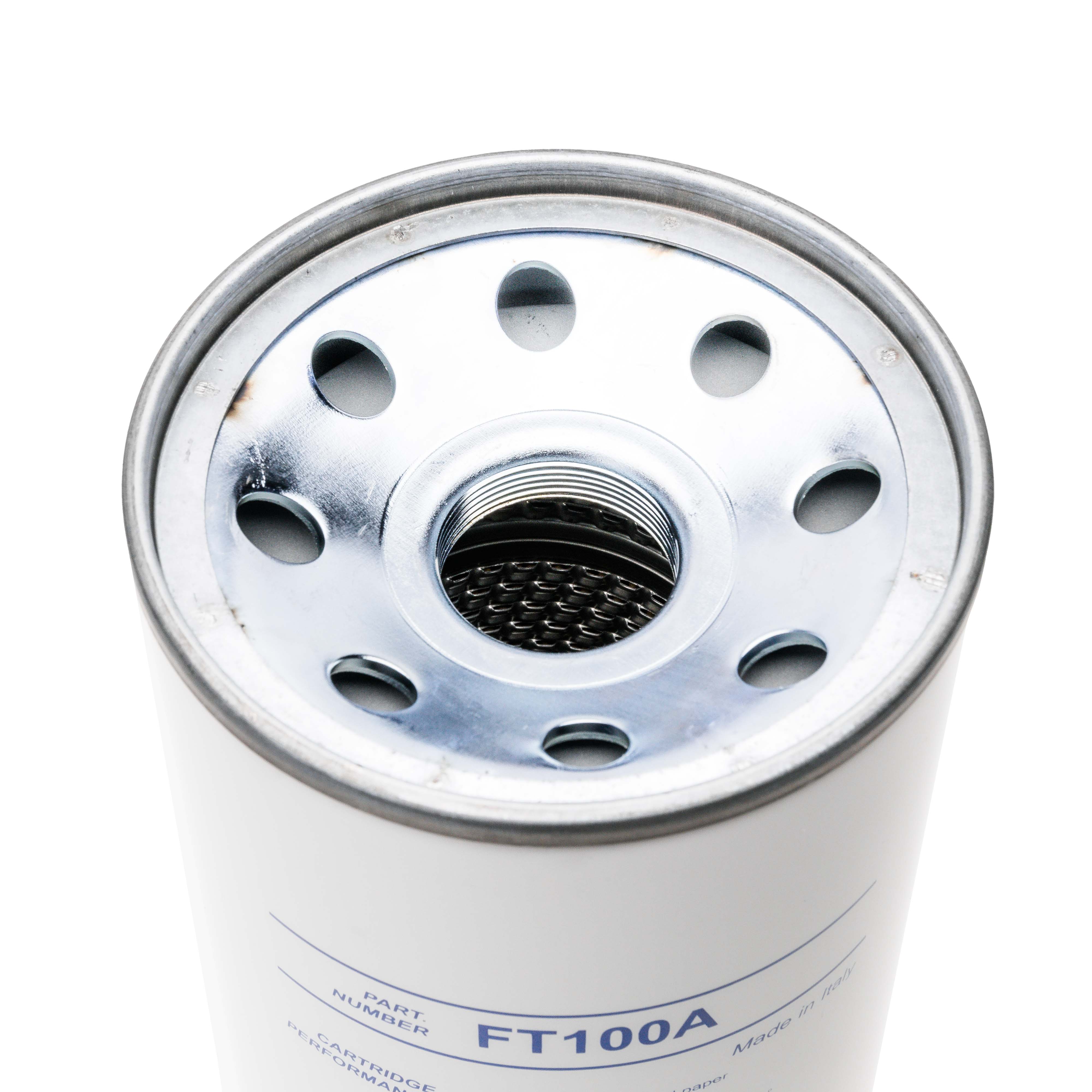

    • Replacement Element Code FT100A

ADAM BY PIUSI Filter DN25 (1") BSP F 100lpm with Pressure Gauge Particulate and Water Removal

SKU: FT10XA

ADAM BY PIUSI Filter DN25 (1") BSP F 100lpm with Pressure Gauge Particulate and Water Removal

$380.00 NZD
$380.00 NZD
Save $0
Sold out
Inclusive of GST.

Other payment options

The Basics

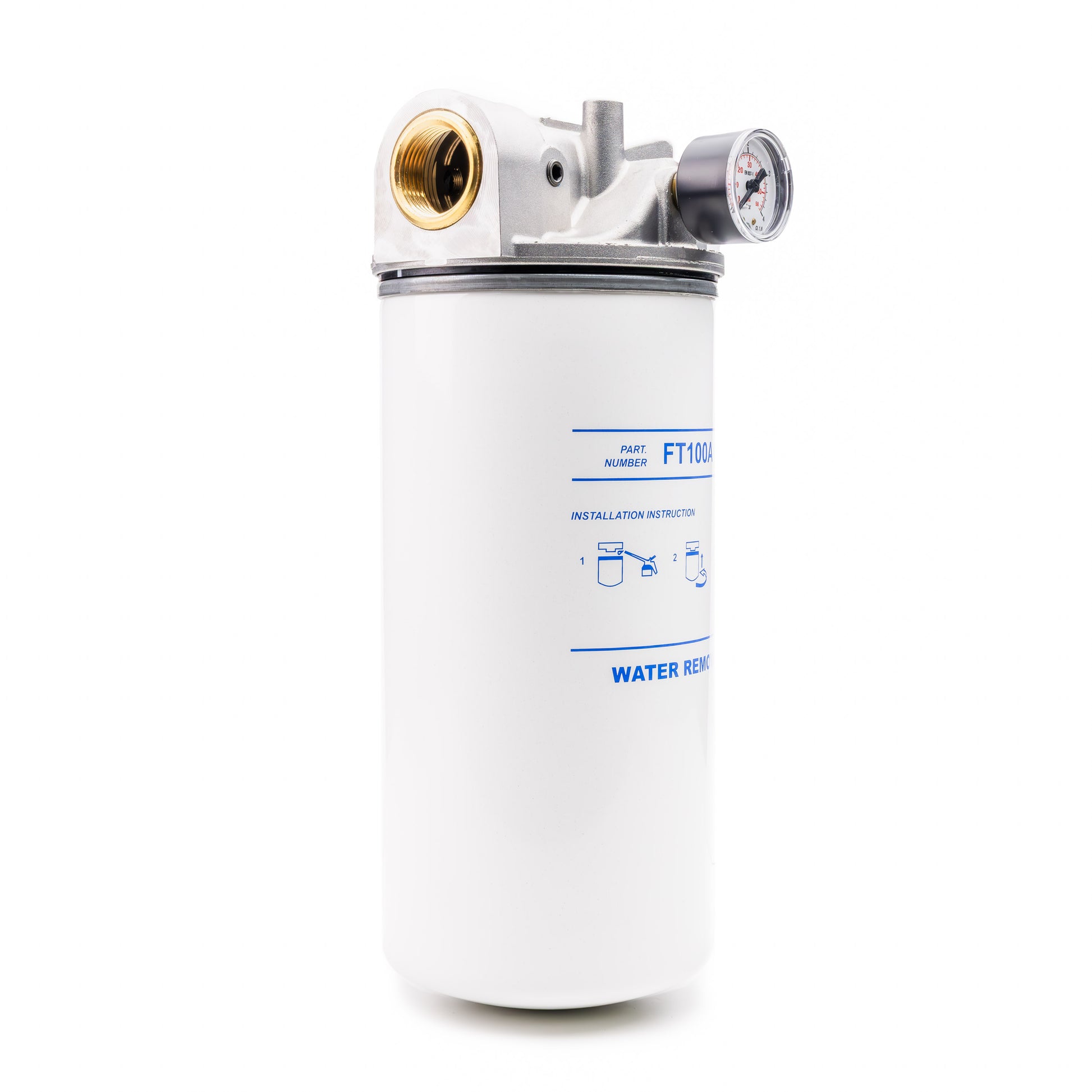

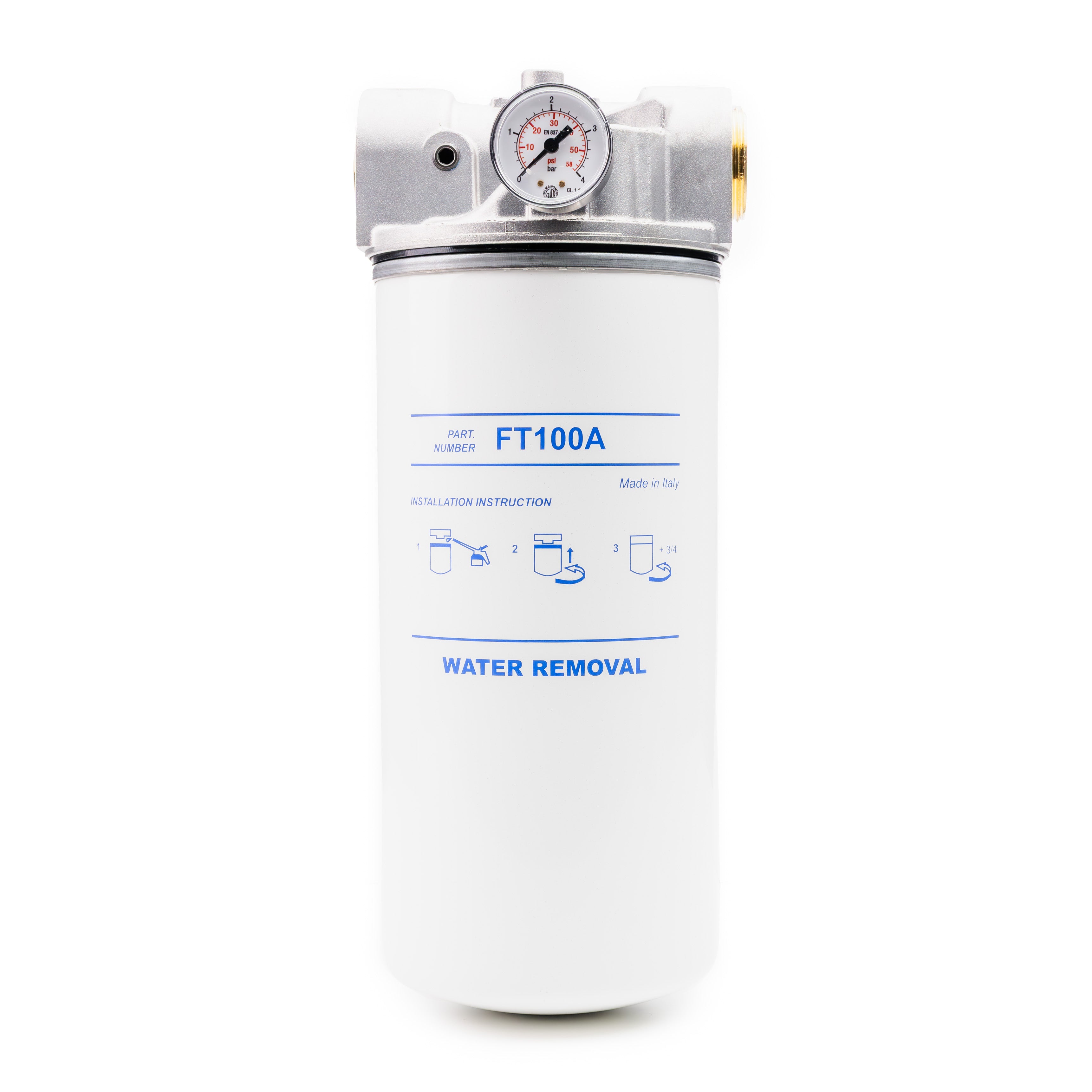

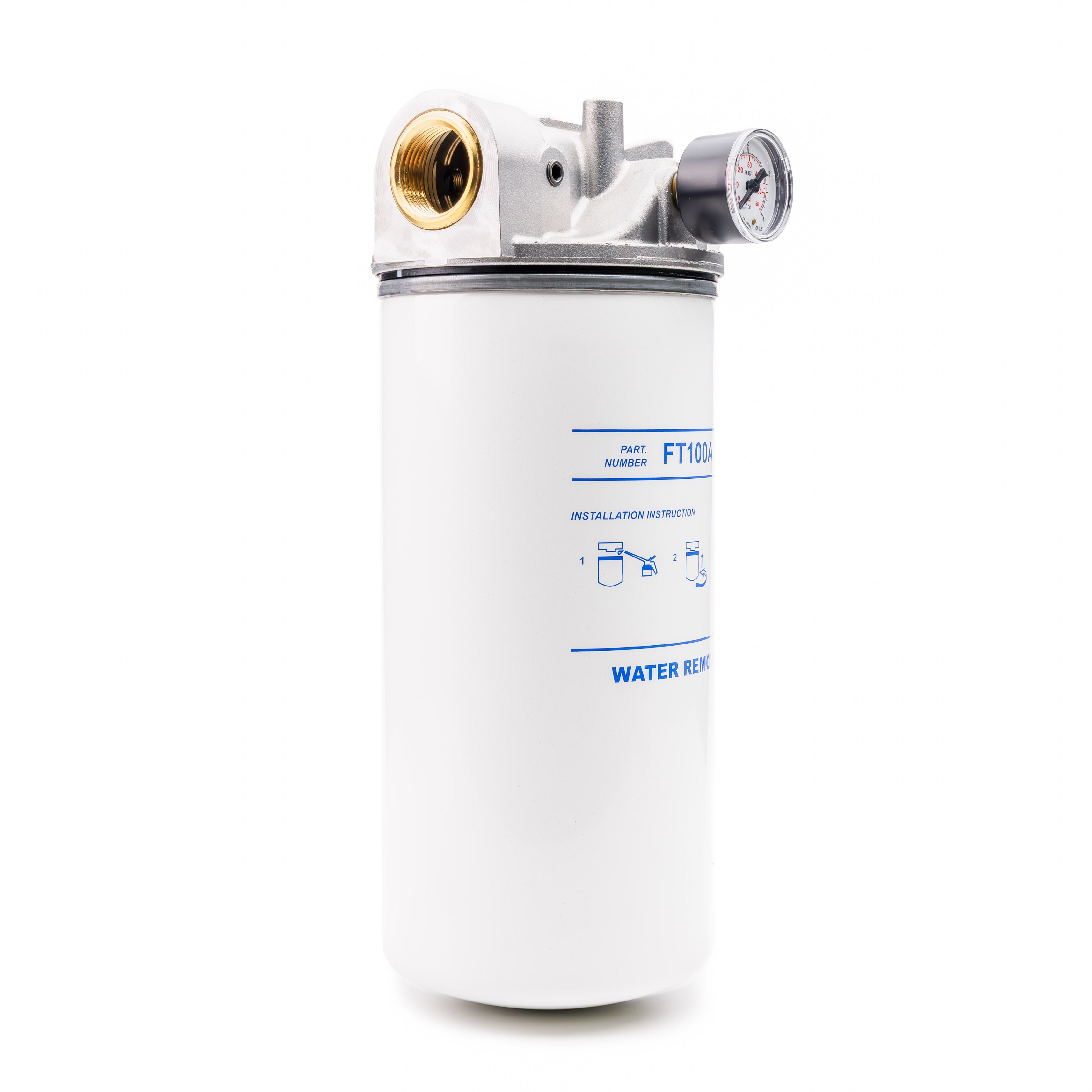

Designed and manufactured by Adam Pump, a Piusi group company, in Italy, the FT10XA Filter Kit, from GO Industrial, provides 30um Particulate and Water Filtration and is suitable to use with Diesel up to 100lpm.  This filter kit features a Saturation Level Indicator Pressure Gauge and features a DN32 (1-1/4") BSP Female Inlet / Outlet.  The filter is supplied with DN25 (1") BSP Female reducing inserts.


Customers also purchased

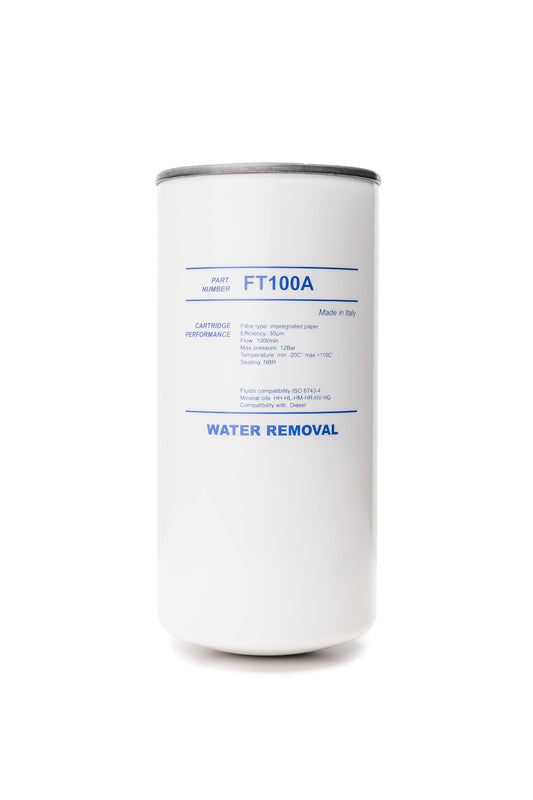

FILTER ELEMENT Particulate and Water Removal to suit FT10XA Filter FT100A

FILTER ELEMENT Particulate and Water Removal to suit FT10XA Filter FT100A

$152.00 NZD
$152.00 NZD
METER ADAM BY PIUSI RF4D1 4 Digit Mechanical 25mm 20-120lpm Litre Display

METER ADAM BY PIUSI RF4D1 4 Digit Mechanical 25mm 20-120lpm Litre Display

$518.00 NZD
$518.00 NZD
PUMP 240V AC 100lpm PA2

PUMP 240V AC 100lpm PA2

$987.00 NZD
$987.00 NZD
  • GO Data Sheet Adam by Piusi Filter FT10XA

Specifications

Filter type Particulate + Water removal
Efficiency [um] 30
Flow [l/min] 100
Max pressure [bar] 14
Temperature [°C] -20/+110
Sealing NBR
Fluid Compatibility diesel, light lubricants,
Thread DN32 (1-1/4") BSP Female Inlet and Outlet
Package Size 220mm L x 150mm W x 220mm H - 1.3kg
    • DN32 (1-1/4") BSP Female Inlet and Outlet supplied with DN25 (1") BSP Female Reducing Inserts
    • 30um Particulate and Water Removal
    • Flow Direction Cast on the Housing

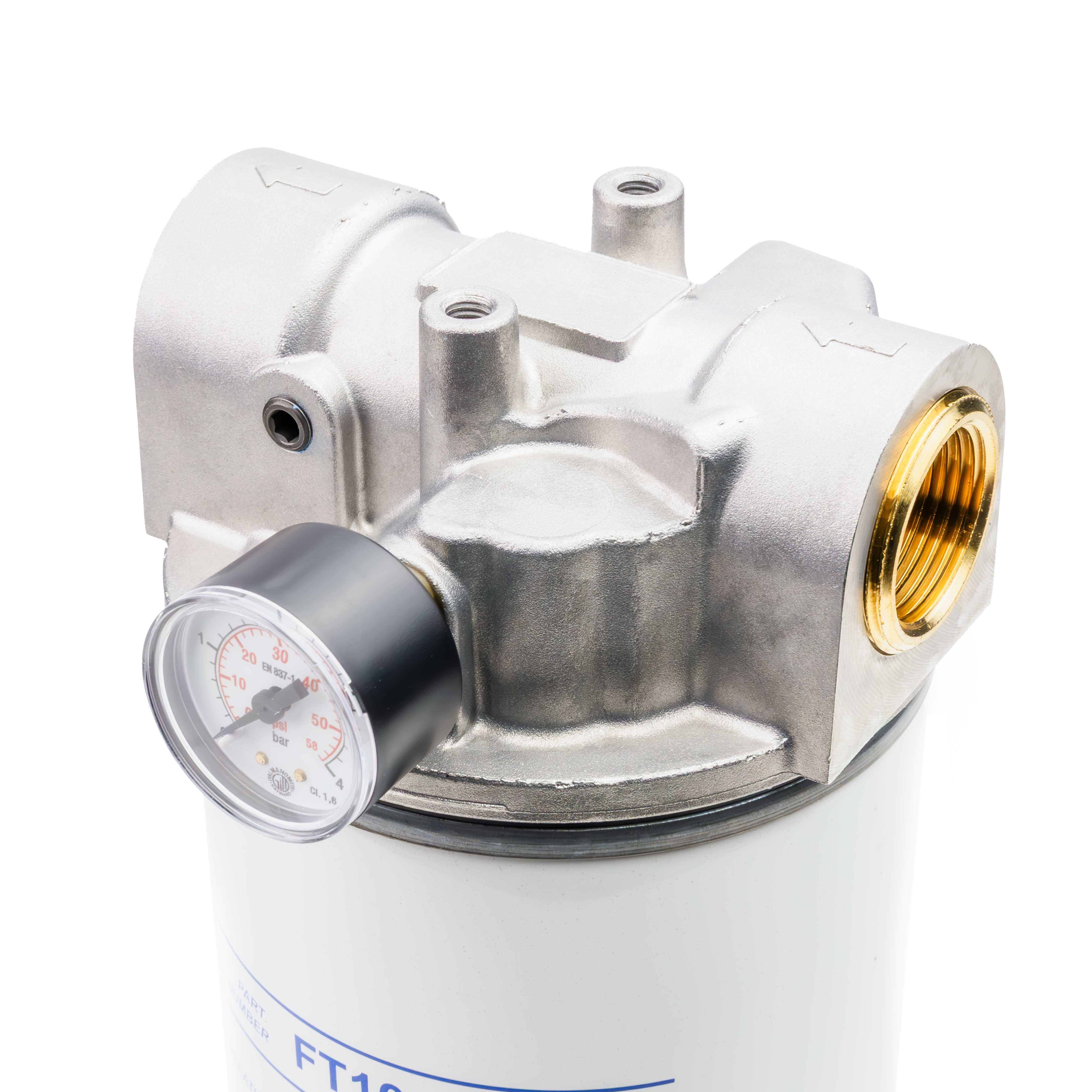

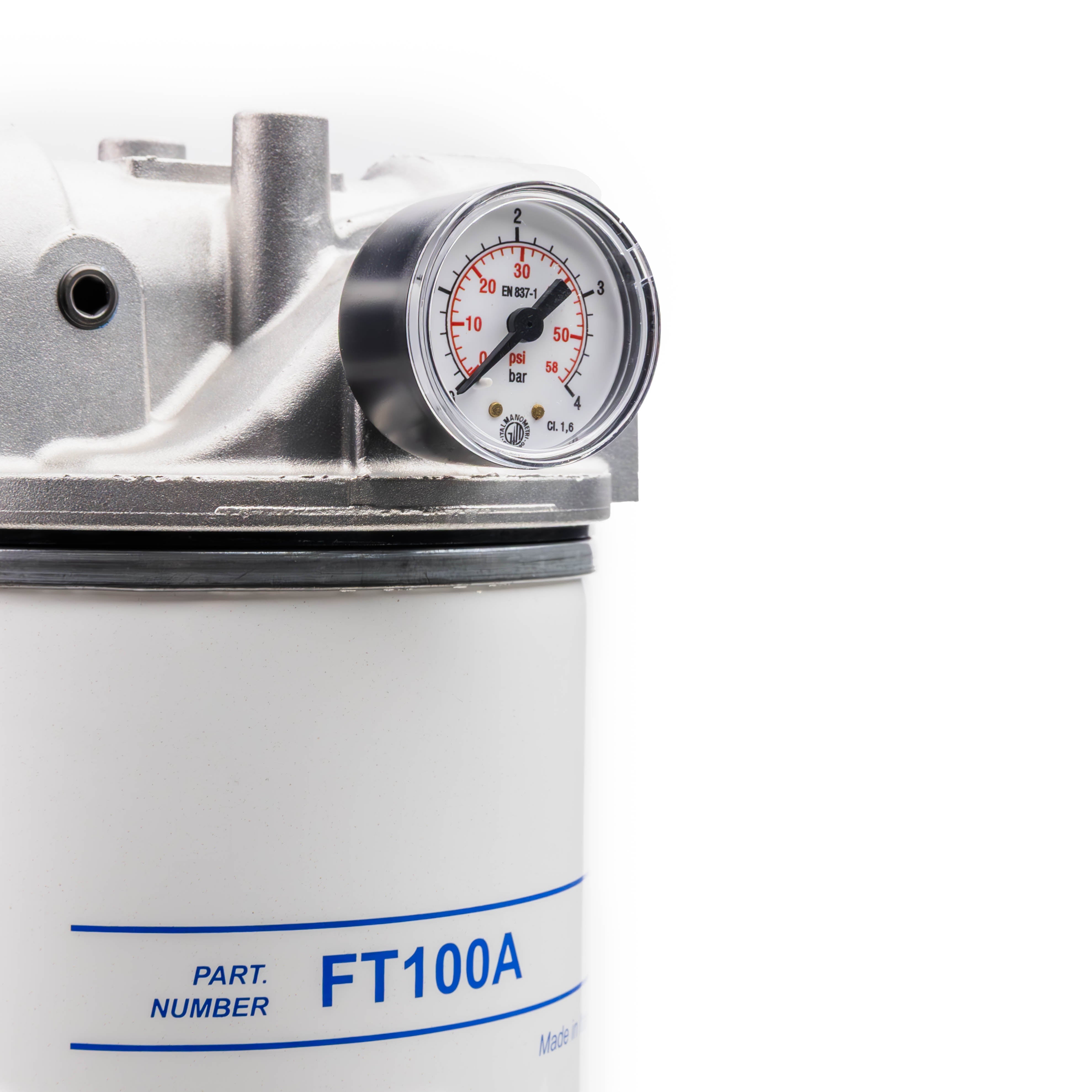

    • Saturation Level Indicator Pressure Gauge
