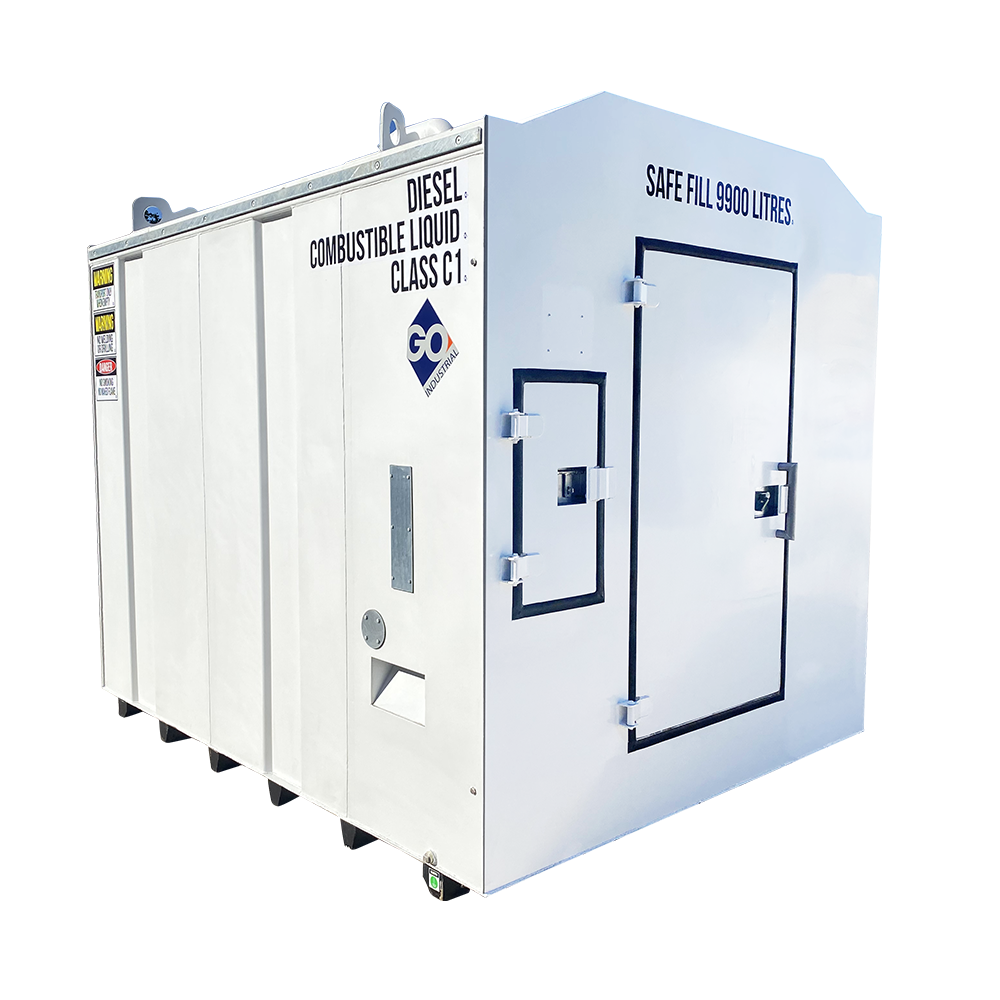

GO STORE Self Bunded Tank STORE-11 Front View

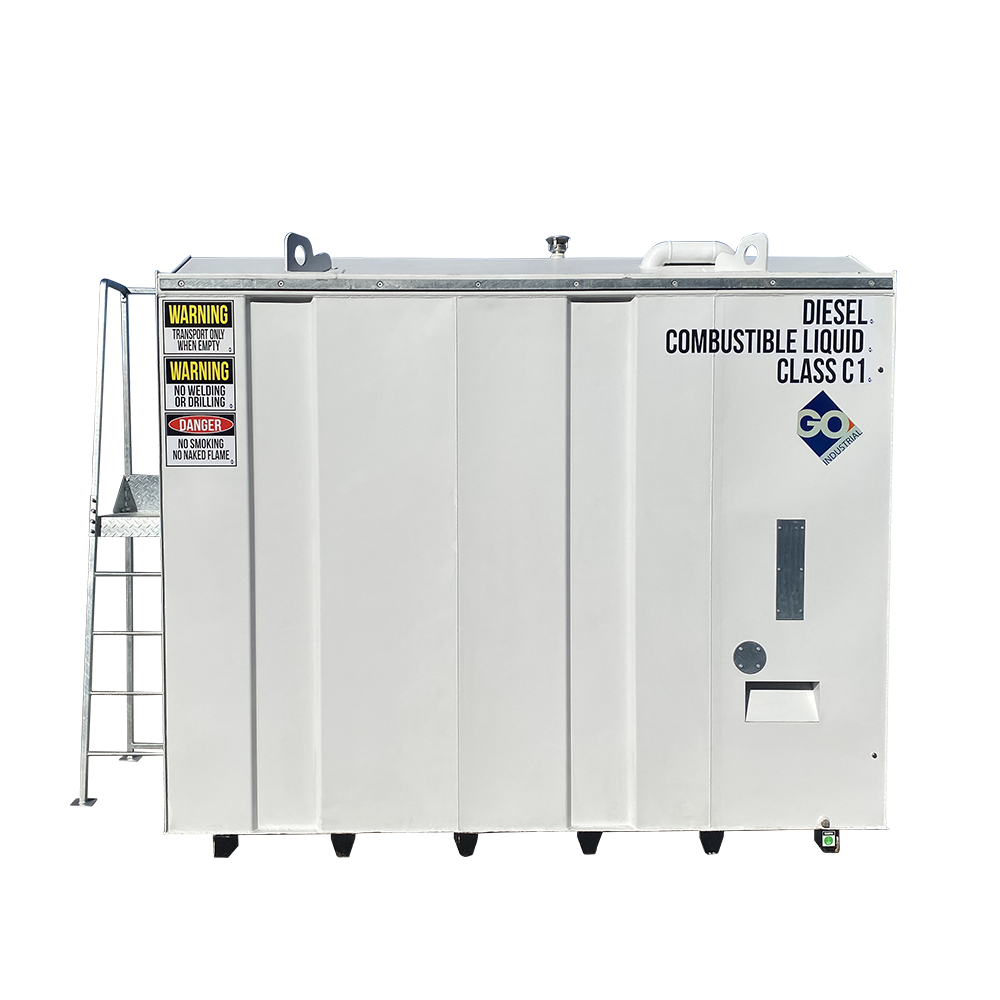

GO STORE Self Bunded Tank STORE-11 Side View

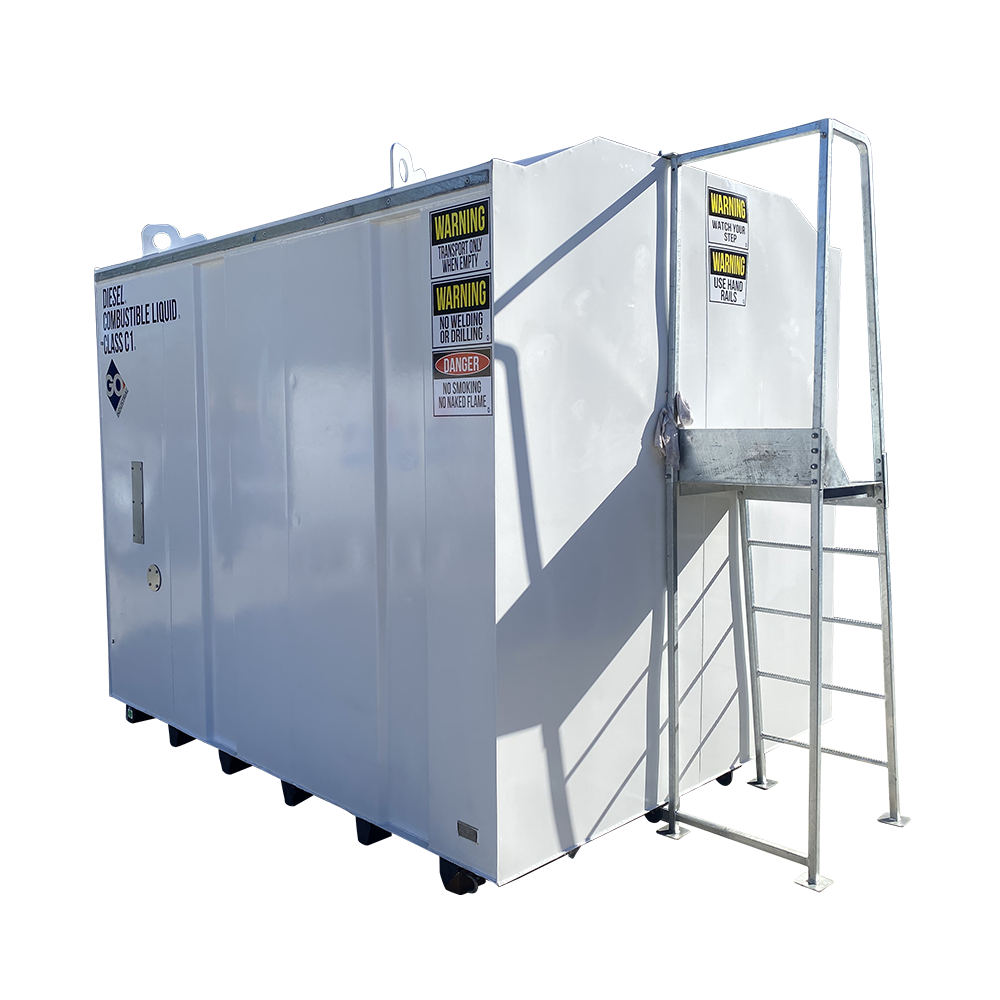

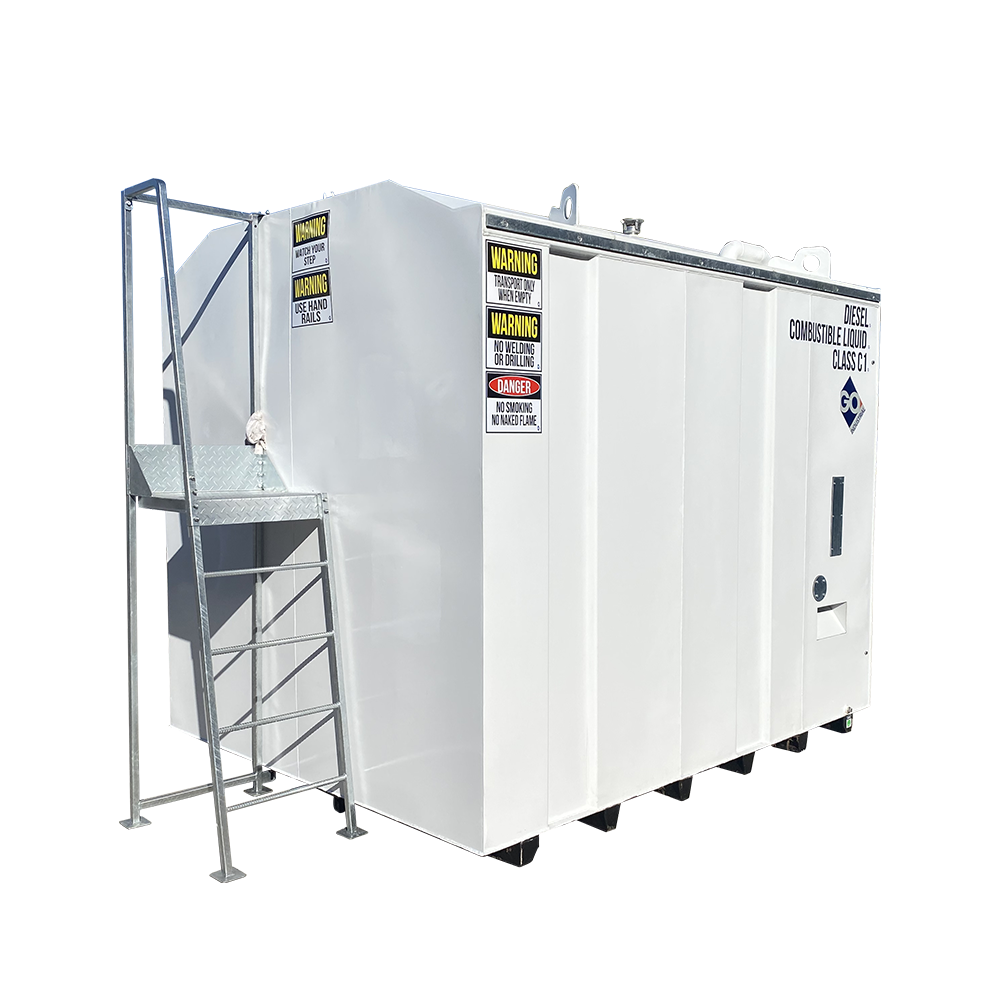

GO STORE Self Bunded Tank STORE-11 Rear View
GO STORE Self Bunded Tank STORE-11 Front View

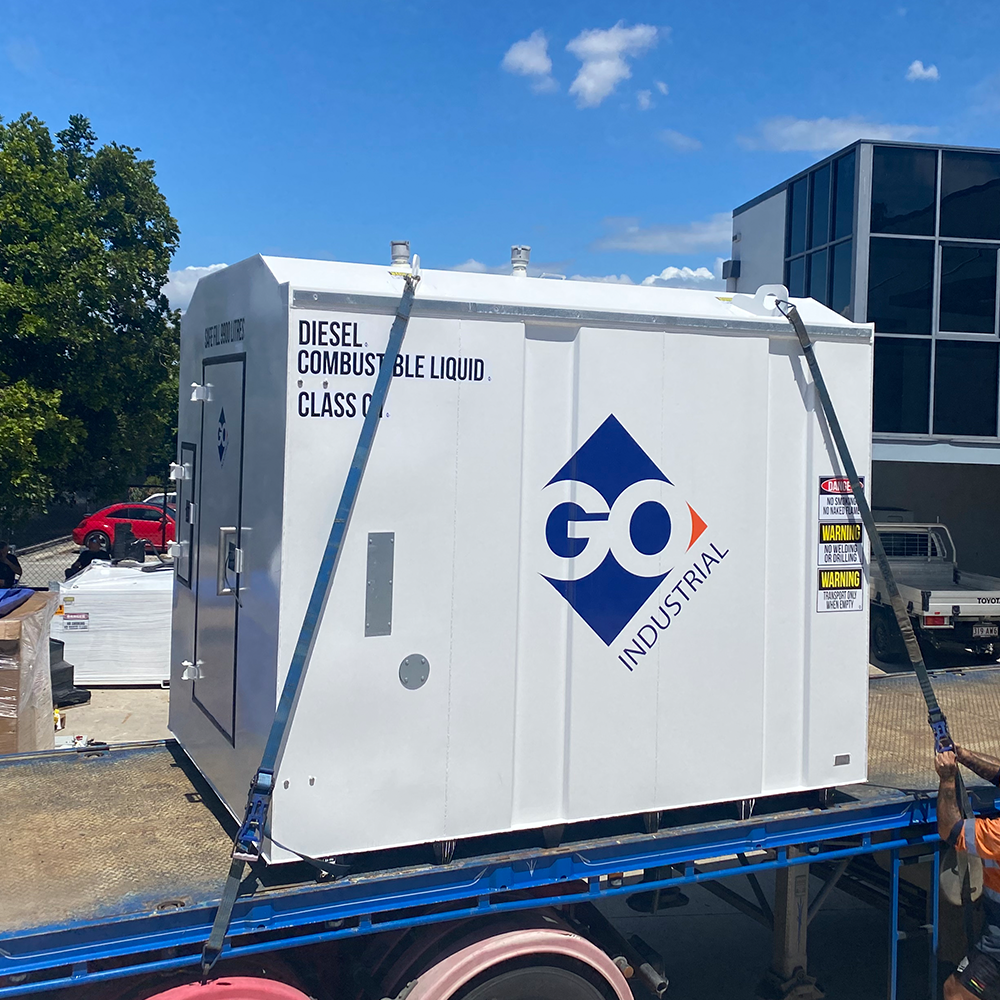

GO STORE Self Bunded Tank 11000L Crane Lifting Lugs Transport Tie Downs

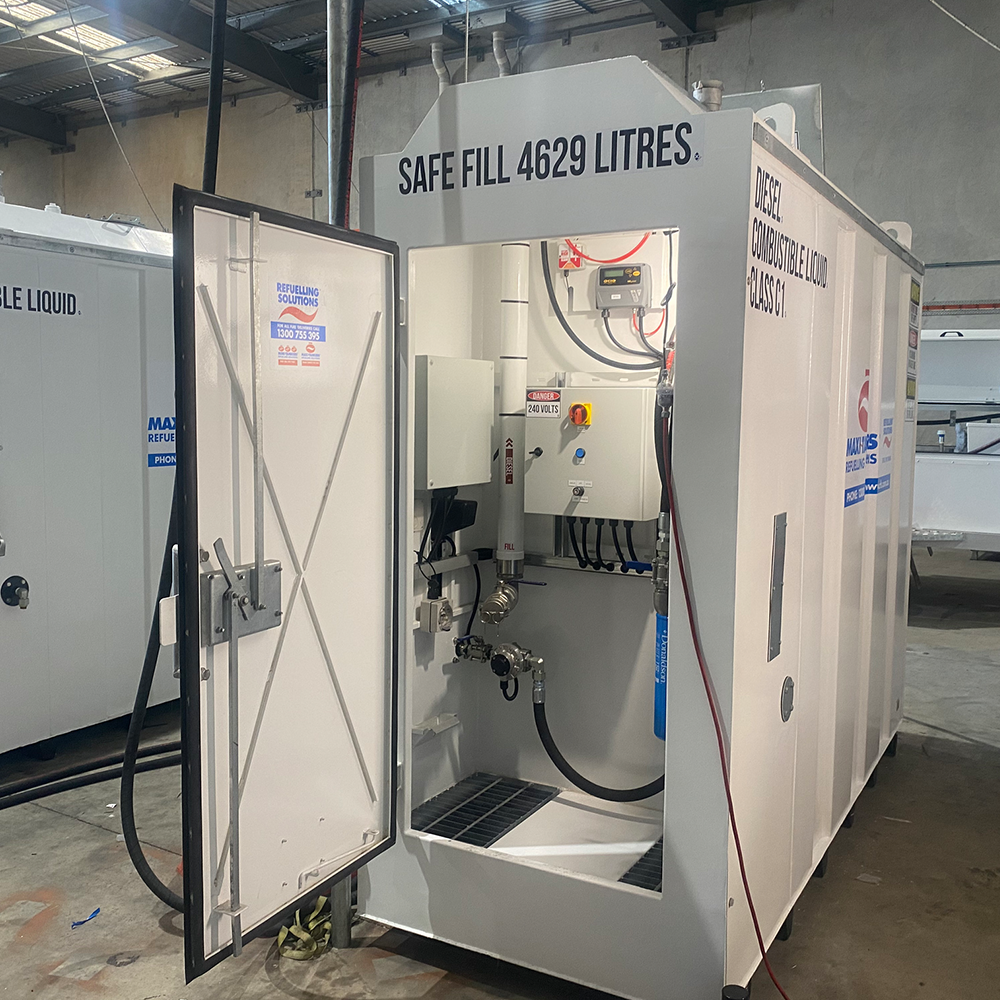

GO STORE Self Bunded Tank 5500L Bunded Pump Bay Housing

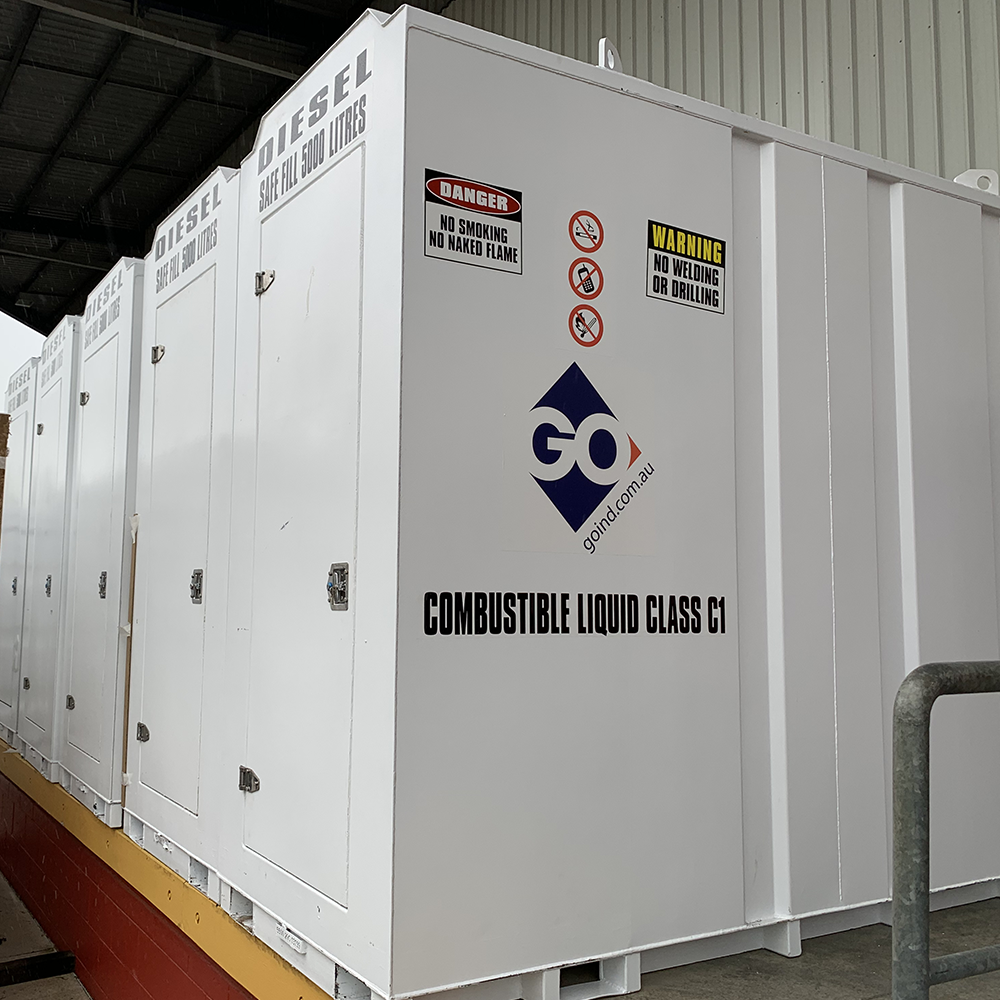

GO STORE Self Bunded Tank Range 5500L Stock

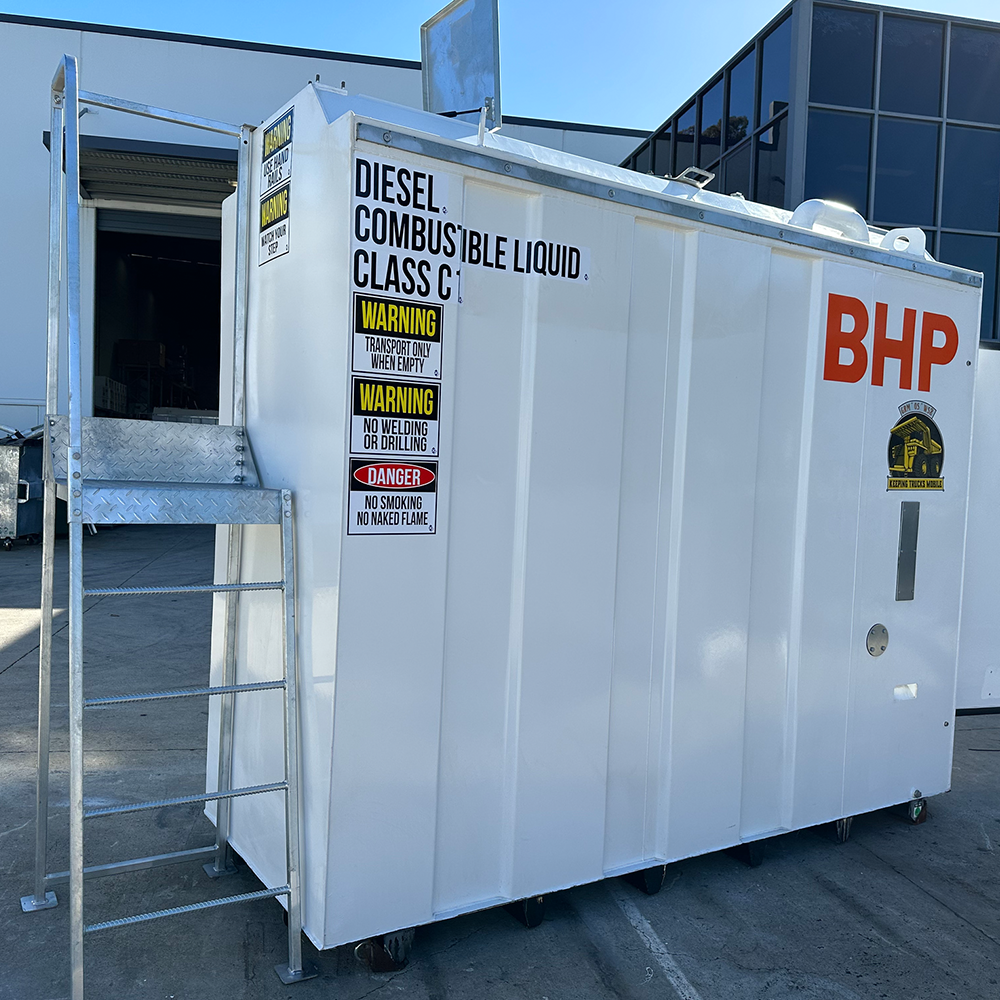

GO STORE Self Bunded Tank 5500L Ladder Assembly STORE-5.5
GO Self Bunded Tank Store 5500L in action with Mini Tankers
  • GO STORE Self Bunded Tank STORE-11 Front View
  • GO STORE Self Bunded Tank STORE-11 Side View
  • GO STORE Self Bunded Tank STORE-11 Rear View
  • GO STORE Self Bunded Tank STORE-11 Front View
  • GO STORE Self Bunded Tank 11000L Crane Lifting Lugs Transport Tie Downs
  • GO STORE Self Bunded Tank 5500L Bunded Pump Bay Housing
  • GO STORE Self Bunded Tank Range 5500L Stock
  • GO STORE Self Bunded Tank 5500L Ladder Assembly STORE-5.5
  • GO Self Bunded Tank Store 5500L in action with Mini Tankers
1 10

At a Glance

  • Small footprint self bunded tank range designed for home base refuelling applications.
  • Product Range 5,500L | 11,000L | 16,000L
  • Lockable bunded pump bay cabinet
  • Designed and approved for the storage and of diesel, petrol, lubricants and waste oil
  • Mild Steel Internal Tank and Wetted Parts - Heavy duty Mild Steel External tank

  • GO Data Sheet STORE
  • GO TANK STORE-5.5 GA
  • GO TANK STORE-11 GA
  • GO TANK STORE-16 GA
  • GO STORE Operations Manual
  • GO Industrial NZ Fluid Handling Complete Range Guide 2024

STORE Self Bunded Tank Product Range


CODE

CAPACITY

SAFE FILL LEVEL

LENGTH (mm)

WIDTH (mm)

HEIGHT (mm)

STORE-5.5

 5,500L 5,000L 2950 1140 2550

STORE-11

 11,000L 10,000L 2950 2300 2550
STORE-16 16,000L 15,000L 3950 2300 2550





    NEW PRODUCT

    • Innovative new range of Self Bunded (Double Wall) Tanks

    FOOTPRINT

    • Small footprint - perfect for home base refuelling applications

    PUMP BAY

    • Lockable full height pump bay housing for secure storage of dispensing equipment

    BUND

    • Galvanised grated bunded area with drain

    FILL POINT

    • DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm

    SUCTION POINT

    • DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.

    SPARE SUCTION

    • Spare DN25 (1") Suction Outlet

    SPARE FITTINGS

    • Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices

    MANWAY

    • 600mm dia manway with internal ladder

    DIPSTICK

    • Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting

    INTERSTITIAL DIP

    • Anodised alunimium interstitial dipstick with brass lockable dipstick cover fitting

    INTERSTITIAL VENT

    • Interstitial emergency vent

    VENT

    • Primary tank free air vent

    DECALS

    • Statutory safety decals

    FORKLIFT TYNES

    • forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site

    LIFTING LUGS

    • certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.

    HOSE OUTLET

    • letterbox style secure weatherproof hose inlet / outlet assembly

    PAINT

    • Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.

GO STORE Self Bunded Tank Range

SKU: STORE

GO STORE Self Bunded Tank Range

$0.00 NZD
$0.00 NZD
Inclusive of GST.

Other payment options

The GO STORE is a small footprint Self Bunded Tank designed for home base refuelling applications. The GO STORE features an integrated bunded pump bay housing which is designed to store, and indeed secure, the dispensing equipment when not in use. This Self Bunded tank is designed and approved to AS1940 and AS1692.


Complete Range Guide

From Fuel Tanks, EV Chargers, and down to all the parts you need — download the Complete Range Guide here.





          Customers also purchased

          iFUEL® Mobile - Fuel Management from your Smart Phone

          iFUEL Mobile

          $3,922.00 NZD
          $3,922.00 NZD
          iFUEL LITE Online Fuel Management System

          iFUEL Lite Online

          $6,578.00 NZD
          $6,578.00 NZD
          GO Bullhorn Filtered Tank Breather Assembly

          Donaldson TRAP Filtered Tank Breather Assembly

          $1,759.00 NZD
          $1,759.00 NZD

          At a Glance

          • Small footprint self bunded tank range designed for home base refuelling applications.
          • Product Range 5,500L | 11,000L | 16,000L
          • Lockable bunded pump bay cabinet
          • Designed and approved for the storage and of diesel, petrol, lubricants and waste oil
          • Mild Steel Internal Tank and Wetted Parts - Heavy duty Mild Steel External tank

          • GO Data Sheet STORE
          • GO TANK STORE-5.5 GA
          • GO TANK STORE-11 GA
          • GO TANK STORE-16 GA
          • GO STORE Operations Manual
          • GO Industrial NZ Fluid Handling Complete Range Guide 2024

          STORE Self Bunded Tank Product Range


          CODE

          CAPACITY

          SAFE FILL LEVEL

          LENGTH (mm)

          WIDTH (mm)

          HEIGHT (mm)

          STORE-5.5

          		 5,500L 5,000L 2950 1140 2550

          STORE-11

          		 11,000L 10,000L 2950 2300 2550
          STORE-16 16,000L 15,000L 3950 2300 2550





            NEW PRODUCT

            • Innovative new range of Self Bunded (Double Wall) Tanks

            FOOTPRINT

            • Small footprint - perfect for home base refuelling applications

            PUMP BAY

            • Lockable full height pump bay housing for secure storage of dispensing equipment

            BUND

            • Galvanised grated bunded area with drain

            FILL POINT

            • DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm

            SUCTION POINT

            • DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.

            SPARE SUCTION

            • Spare DN25 (1") Suction Outlet

            SPARE FITTINGS

            • Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices

            MANWAY

            • 600mm dia manway with internal ladder

            DIPSTICK

            • Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting

            INTERSTITIAL DIP

            • Anodised alunimium interstitial dipstick with brass lockable dipstick cover fitting

            INTERSTITIAL VENT

            • Interstitial emergency vent

            VENT

            • Primary tank free air vent

            DECALS

            • Statutory safety decals

            FORKLIFT TYNES

            • forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site

            LIFTING LUGS

            • certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.

            HOSE OUTLET

            • letterbox style secure weatherproof hose inlet / outlet assembly

            PAINT

            • Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.
