- GO Manual Franklin EVO 200
- GO Manual Franklin EVO200 Installation Guide
- GO Manual Franklin EVO 200 Programming Guide
- GO Manual Franklin EVO 200 LCD Display Installation Guide
- GO Manual Franklin EVO 200 Cover Replacement Guide
- GO Manual Franklin EVO 200 Fuse Replacement Guide
- GO Manual Franklin EVO 200 Input Board Replacement Guide
- GO Manual Franklin EVO 200 Main Board Replacement Guide
- Third party certification of leak detection capabilities
- Third party verified “MATURE” security posture level
Maximum tanks monitored | 6 (EVO™ 200)/14 (EVO™ 400) |
Maximum sensor input capacity | 6 (EVO™ 200)/14 (EVO™ 400) |
Lines capacity | 6 (EVO™ 200)/14 (EVO™ 400) |
Dry contact input channels | 2 |
Relay output channels | 2 |
Connectivity | Ethernet, RS-232, RS-485, standard USB, Mini-B USB, and WiFi (optional) |
Display type | 7" (17.78 cm) color LCD touch screen |
Printer type | External (network or USB) |
Alarm | Internal audible alarm |
LEDs | Alarm, warning, and power |
Tank chart correction points | 7,500 |
Applicable liquids | Petroleum, chemicals, and waste |
Level units | Inches, centimeters, and millimeters |
Volume units | Gallons or liters (mass with density option) |
Power requirements | 110 to 240 VAC, 50/60 Hz, 2.6 Amps |
Operating temperature | 32° to 104° F (0° to 40° C) |
Humidity | 0-95% non-condensing |

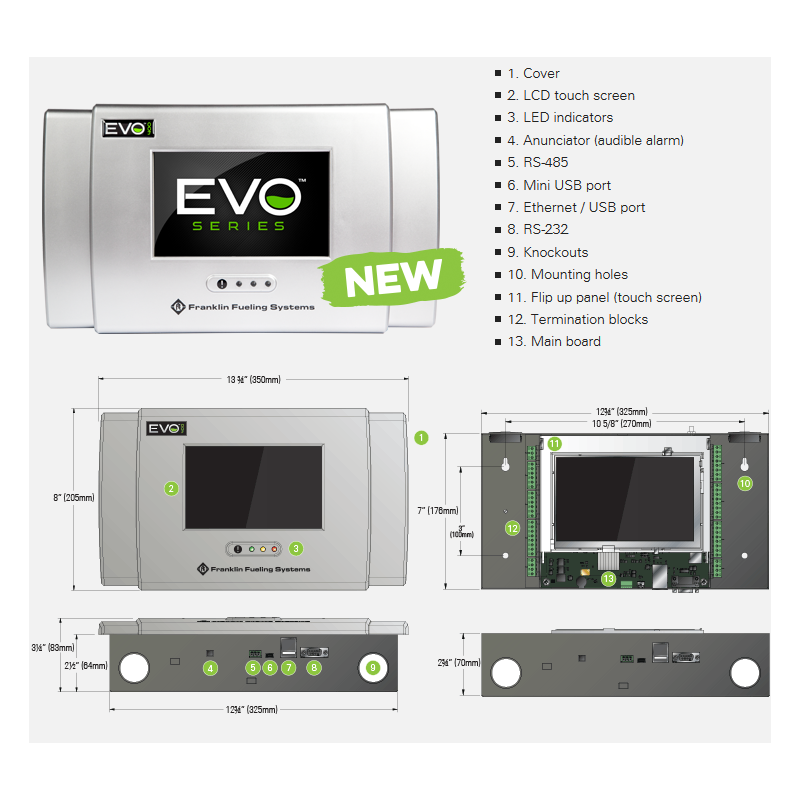

Dimensions | H: 8" (205 mm), W:13 ¾" (350 mm),D: 3¼" (83 mm) |
Alarm set points | High/low product, water, and temperature |
Technical Advantages | Inventory reconciliation/tank autocalibration/flow rate monitoring (optional) |
Measurements | Density, mass, and phase separation measurement |
Notifications | Email and SMS |
Programming | Conditions |
Monitoring | Back-up generator |
Support | MODBUS™ |
Approvals | UL, cUL, ATEX, IECEx, GSA IT Security |
Certifications |
|
-
In Summary
Simple - simple setup and operation
Optional Web Interface - remote connectivity via the iFUEL Tank web interface
Simple Interface - full-color 7” LCD touchscreen provides one of the most intuitive user interfaces available with simplified user features you won’t find anywhere else
Secure - EVO 200 keeps your site in compliance and protected from security threats with customizable user roles, user activity tracking, and up to 3-years of data back-up to protect against power outages or other system interruptions
Inventory Reconciliation - an automated leak detection function that analyzes tank volume, deliveries, and sales data to detect fuel loss or gains with a high level of accuracy.
Auto Calibration - eliminate discrepancies in delivery reporting and daily reconciliations caused by inaccurate tank information programmed into the EVO 200 with this advanved function that automatically generates a highly accurate tank strapping chart.
Franklin Turbine Pump Interface - enhanced remote pump monitoring and control including pump-in-water automation, clogged intake escalation, tank leveling, and tank priority
Icon Based Design - designed to be understood easily and operated intuitively. It’s simple to operate for new users and can reduce the amount of training required to operate
One Touch Buttons - users can customise the home screen buttons to automate and carry out anything from complex, multi-function processes to simple daily delivery report generation - all with the touch of a single button
Quick Jump Menu - navigate quickly from application to application with ease. This time-saving menu makes the interface’s structure extremely shallow, simple to navigate, and reduces the amount of steps it takes to accomplish tasks
Specifications
Maximum tanks monitored: 6
Maximum sensor input capacity: 6
Total # of inputs: 6
Dry contact input channels: 2
Relay output channels: 2
Connectivity: Ethernet, RS-232, RS-485, standard USB, mini USB, and Wifi (optional)
Display type: 7” (17.78 cm) color LCD touch screen
Printer type: External (network or USB)
Alarm: Internal audible alarm
LEDs: Alarm, warning, and power
Tank chart correction points: 7,500
Applicable liquids: Petroleum, chemicals, and waste
Level units: Inches, centimeters, and millimeters
Volume units: gallons or litres (mass with density option)
Power requirements: 110 to 240 VAC, 50/60 hz, 1.0 Amps max.
Operating temperature: 32° to 104 °F (0° to 40 °C)
Humidity: 0-90% non-condensing
Dimensions: Height: 8” (205mm), Width:13 ¾” (350mm), Depth: 3¼” (83mm)
Capabilities
High/low product, water, and temperature alarm set points
Inventory reconciliation / tank autocalibration (optional)
Density, mass, and phase separation measurement
Email and SMS notifications
Back-up generator monitoring
-
pagination here

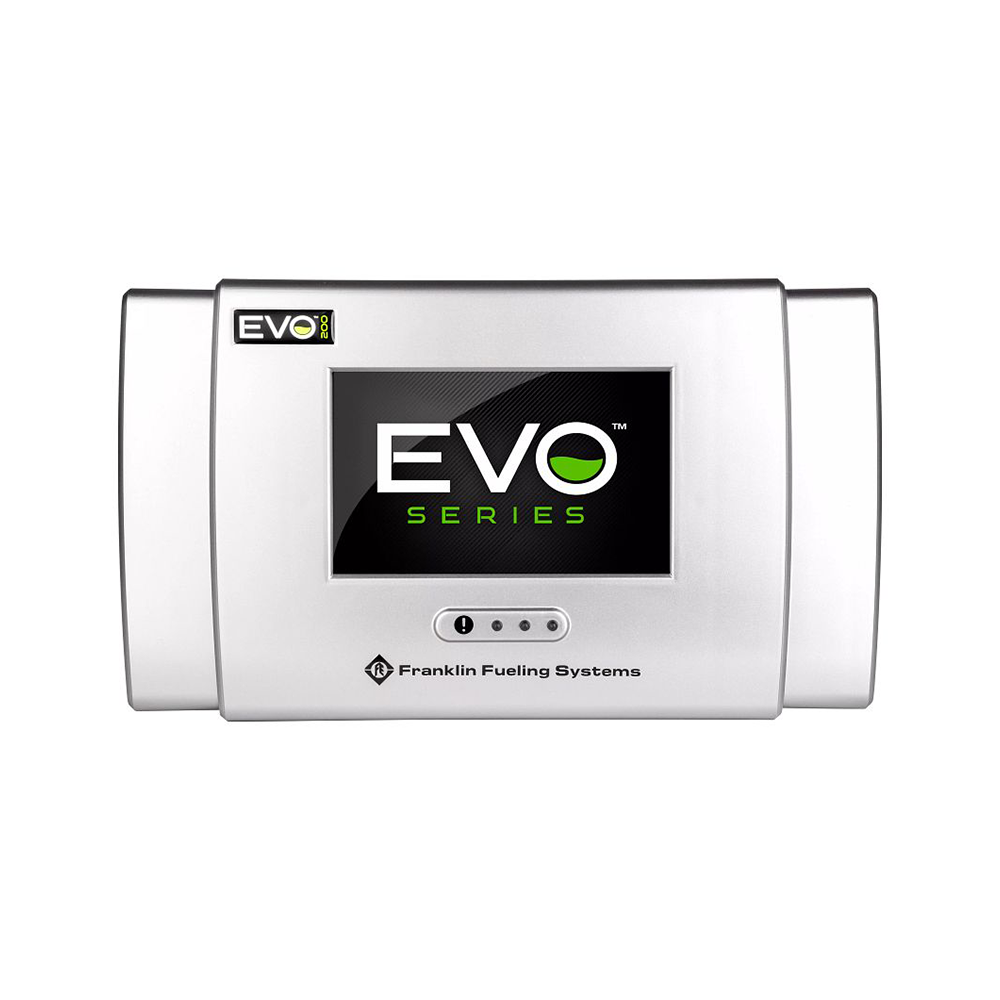

Franklin EVO 200 Tank Gauge c/w Probe for tanks up to 2m in height
SKU: EVO200DFranklin EVO 200 Tank Gauge c/w Probe for tanks up to 2m in height
Other payment options
Couldn't load pickup availability
The Basics

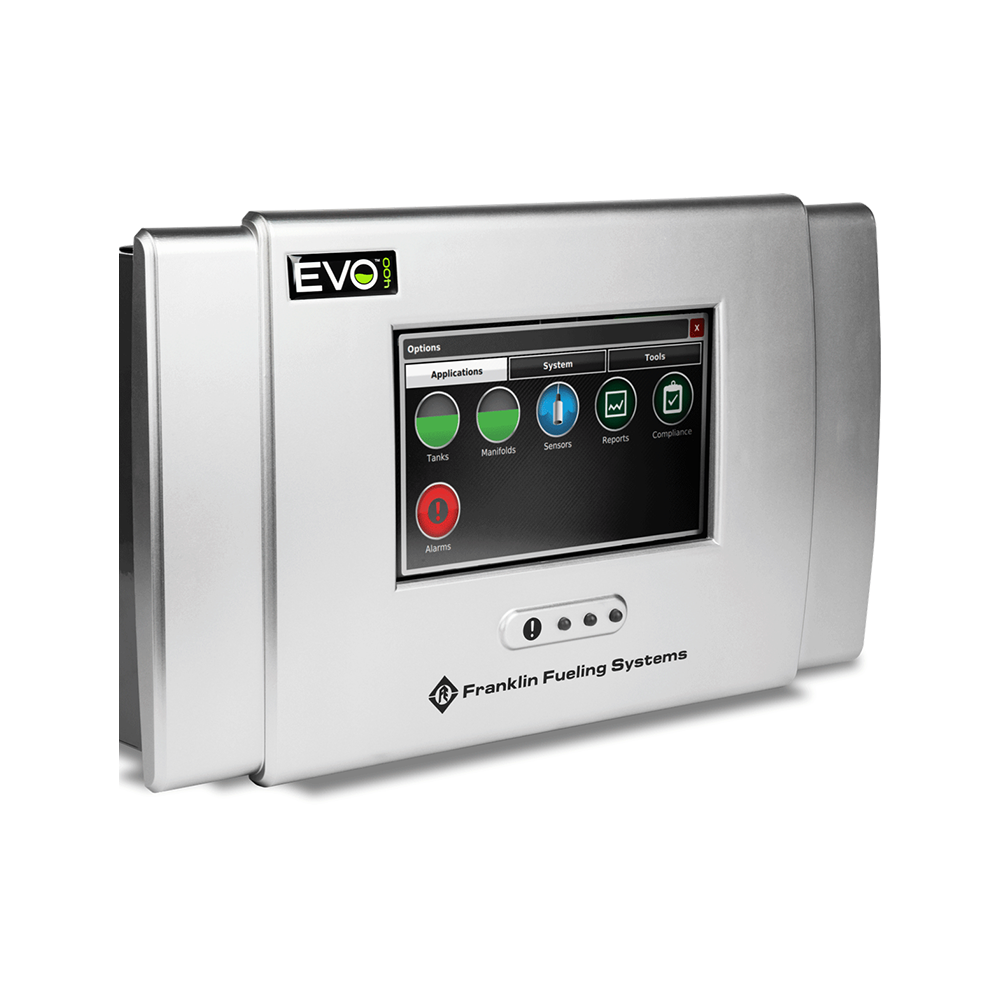

The Franklin Refuelling EVO 200 Automatic Tank Gauge, from GO Industrial, can interface with up to 6 tanks across the wide range of sensors and probes available. This value automatic tank gauge provides turbine pump interface, inventory reconciliation, and tank auto-calibration. Accuracy is +/- 0.1%.
The highly-intuitive, full-colour, icon-based touch screen provides user-friendly on-site access to inventory, alarm, and compliance data. The simple setup and operation of the EVO 200, remote connectivity via iFUEL TANK, and advanced security features protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.
