Fozmula Fuel Level Sensor T/LL130
  • Fozmula Fuel Level Sensor T/LL130
1 1
  • GO Data Sheet Fozmula T LL130 Capacitance Liquid Level Sensor
  • GO Manual Fozmula T LL130 Capacitance Liquid Level Sensor
  • GO Specification Sheet Fozmula TLL130
  • GO Trouble Shooting Guide Fozmula TLL130

Dimensions

  • Probe length: Min 200mm, Max 2000mm (Min 7.9”, Max 78.7”)

Liquid Types

  • Liquids compatible with construction materials, typically diesel, kerosene, petrol and water.

Accuracy

  • ±2% of depth @ 20 ºC

Electrical

  • Supply Voltage: 9-34 VDC
  • Supply Current: 30 mA
  • Supply Protection: Over-voltage 80 VDC for 2 minutes. Reverse polarity.
  • Signal Output: Resistance range; 0-250 Ω or 250-0 Ω, 2 Ω steps, 0.4 W max. Voltage source range; 0-5 V or 5-0 V, 20 mV steps, 10 mA max.
    PWM 8 kHz on a 5 VDC rail.
  • Alarm Output: Switch to ground. Max 100 mA. High or low level. Default setting is 12.5% of full level. Minimum 30 mm from sensor end.
  • Connections: 4 Way Delphi Packard Metri-Pack 150 Series.
  • Mating Connector: Fozmula C/K1 (Delphi Packard Metri-Pack 150)
    To fit 0.8-1.0 mm2 conductor, Ø1.6-2.15 mm sleeve.

Materials

  • Enclosure: 30% glass filled nylon
  • Internal Electrode: PTFE
  • Sensor Tube: 316 stainless steel
  • Internal Spacers: Polypropylene
  • End Plug: PTFE
  • Wetted Seals: Viton (FKM)

Environmental Ratings

  • Operating Temperature: -20ºC to +85ºC (-40ºF to +185ºF)
  • Sealing: IP67
  • Max tank pressure: 1 bar
  • Shock: 50 g, 6.3 ms
  • Vibration: 15.3 Grms BS EN 60068-2-64:1993

Fozmula Capacitance Liquid Level Sensor T/LL130

SKU: TLL130-200

Fozmula Capacitance Liquid Level Sensor T/LL130

$283.00 NZD
$283.00 NZD
Save $0
Sold out
Inclusive of GST.
Length

Other payment options

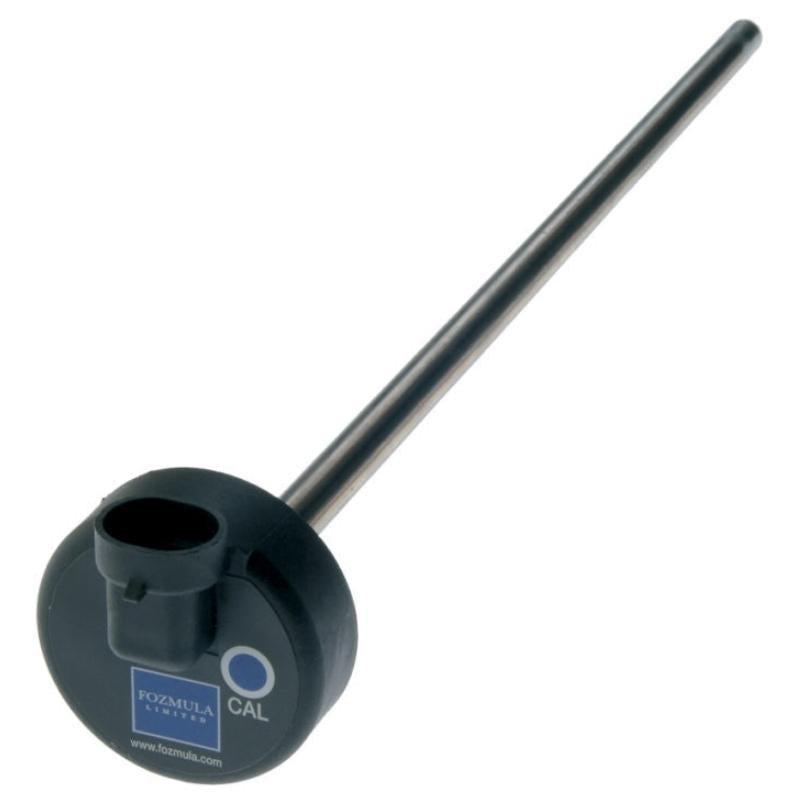

The Fozmula T/LL130 Capacitance Liquid Level Sensor, from GO Industrial, is designed for use in water, coolant or fuel / oil tanks and provides a factory set variable resistive or voltage output suitable for driving industry standard fuel gauges or connecting into PLCs.

The Fozmula T/LL130 has no moving parts to stick or wear and can be mounted at any angle above horizontal as long as it covers the whole depth of the tank (the unit cannot be inverted). An optional manual calibration feature is available.


      Customers also purchased

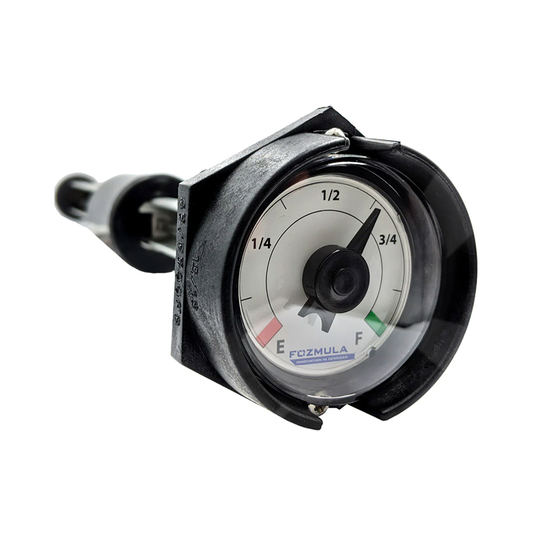

      Fozmula Vertical Spiral Contents Gauge Range GLL63

      Fozmula Vertical Spiral Contents Gauge Range G/LL63

      From $225.00 NZD
      From $225.00 NZD

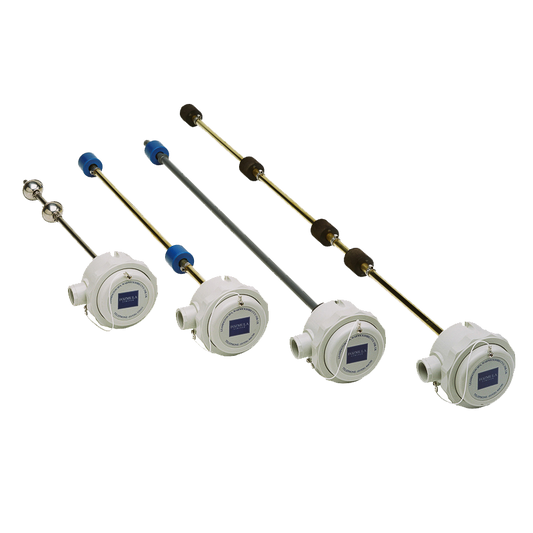

      Fozmula Float Switch Vertical T/LL70
