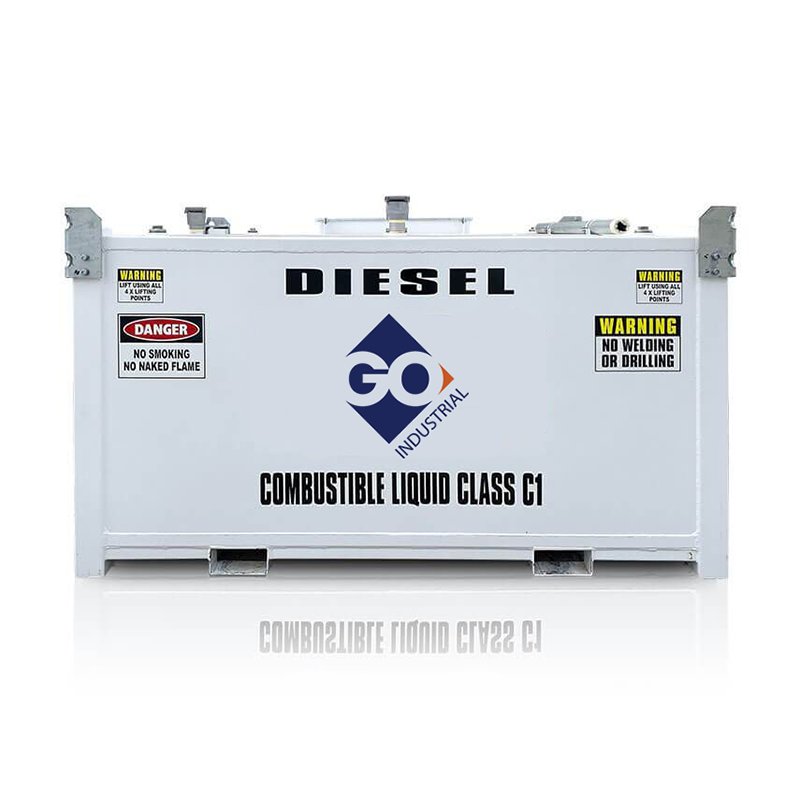

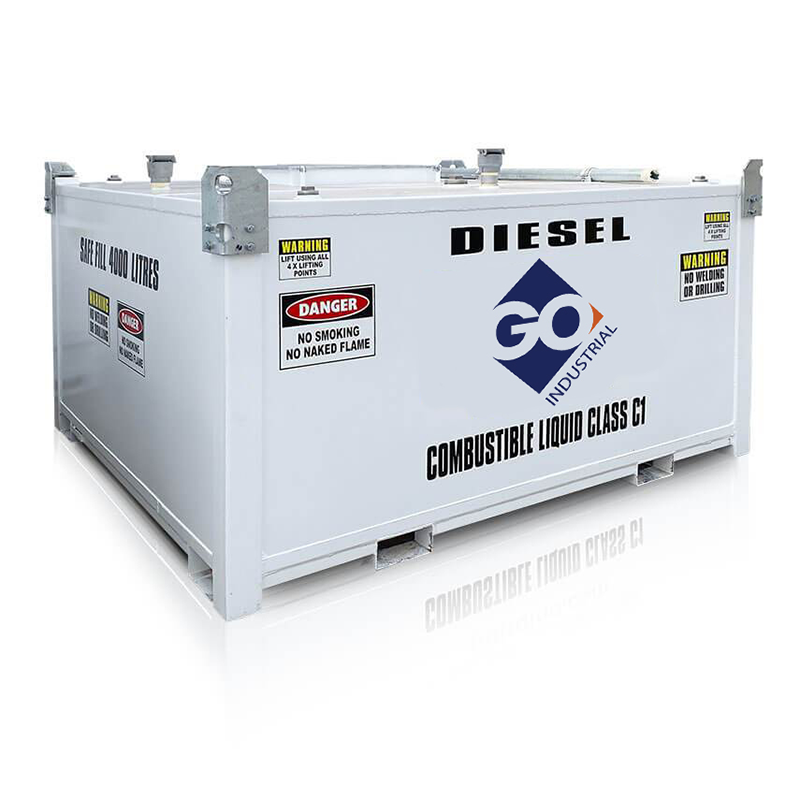

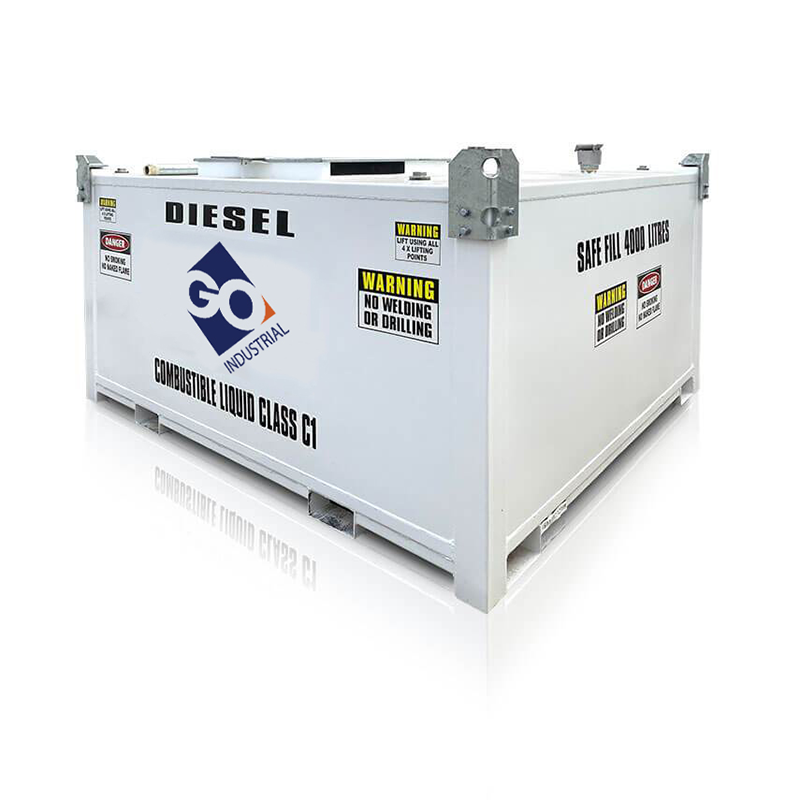

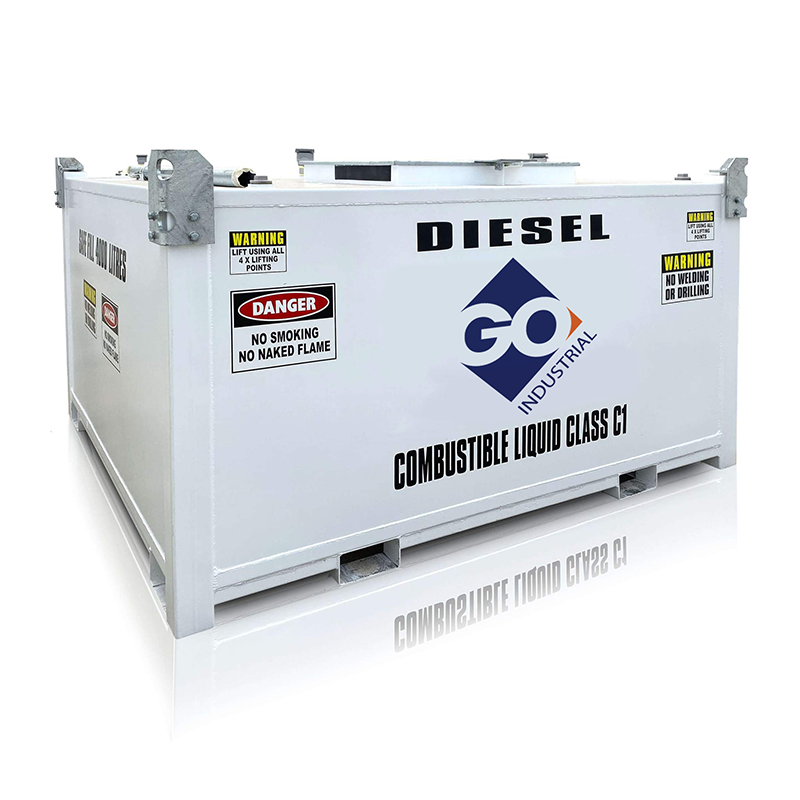

GO FUEL BOX Self Bunded Tank Range
GO FUEL BOX Self Bunded Tank Range
GO FUEL BOX Self Bunded Tank Range
GO FUEL BOX Self Bunded Tank Range
GO BOX Self Bunded Tank Range
GO BOX Self Bunded Tank Range

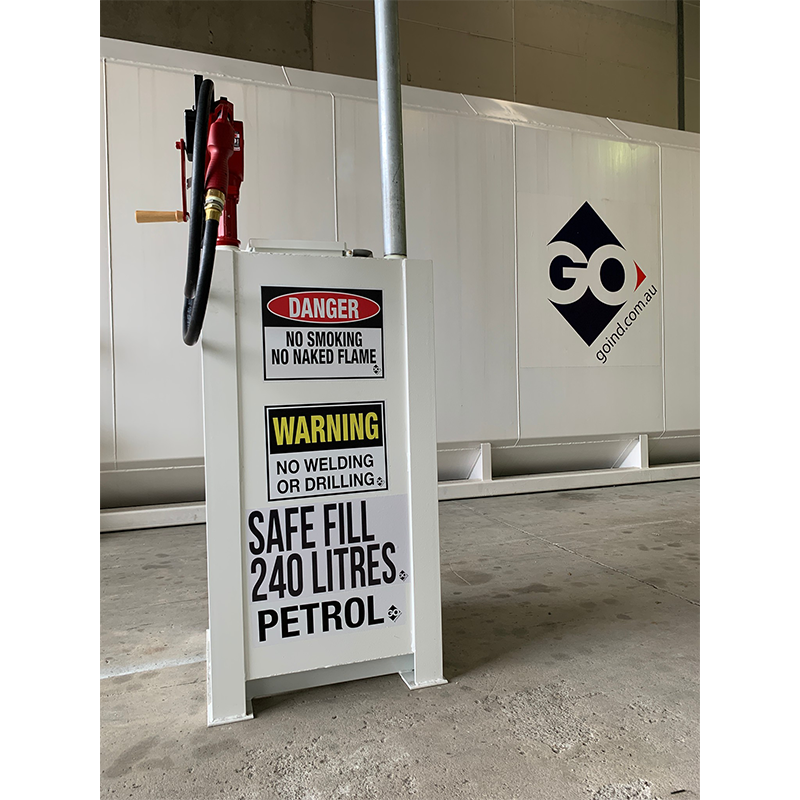

GO Box-0.25 250L Self Bunded Tank configured for Petrol Storage with Fill-Rite FR112 Hand Pump

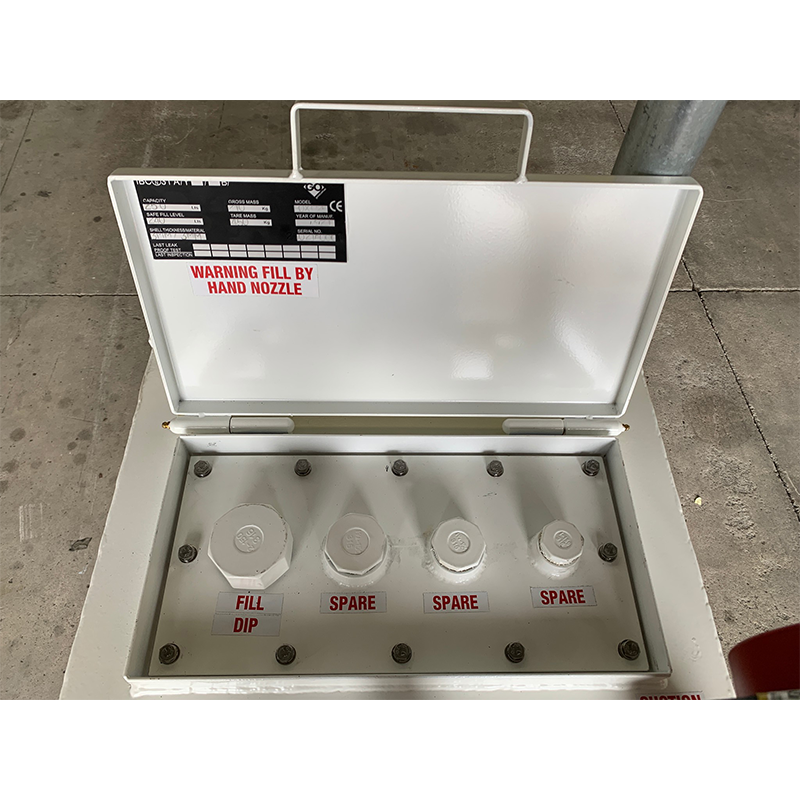

GO Box-0.25 250L Self Bunded Tank - spill box with various fittings

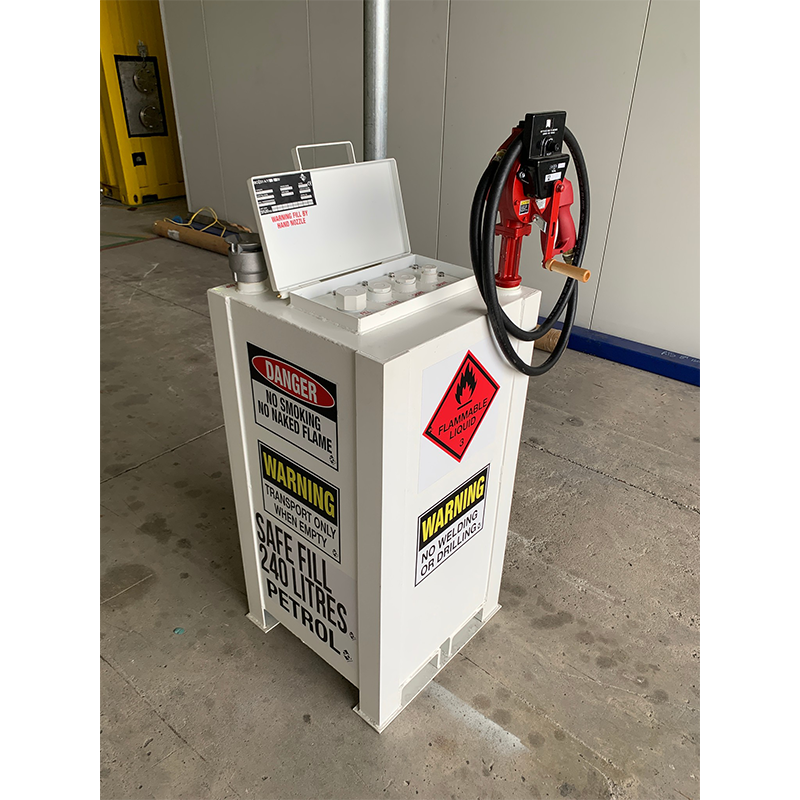

GO Box-0.25 250L Self Bunded Tank configured for Petrol Storage with Fill-Rite FR112 Hand Pump

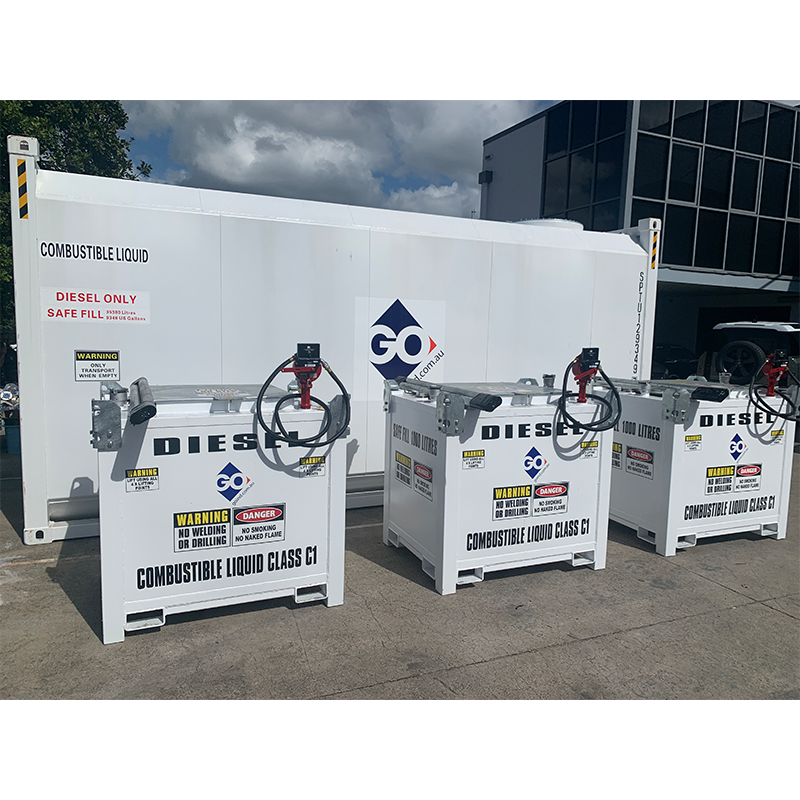

GO BOX Self Bunded Tank 3 x 1100L fitted with Fill-Rite FR112CL Hand Pumps
  • GO FUEL BOX Self Bunded Tank Range
  • GO FUEL BOX Self Bunded Tank Range
  • GO FUEL BOX Self Bunded Tank Range
  • GO FUEL BOX Self Bunded Tank Range
  • GO BOX Self Bunded Tank Range
  • GO BOX Self Bunded Tank Range
  • GO Box-0.25 250L Self Bunded Tank configured for Petrol Storage with Fill-Rite FR112 Hand Pump
  • GO Box-0.25 250L Self Bunded Tank - spill box with various fittings
  • GO Box-0.25 250L Self Bunded Tank configured for Petrol Storage with Fill-Rite FR112 Hand Pump
  • GO BOX Self Bunded Tank 3 x 1100L fitted with Fill-Rite FR112CL Hand Pumps
1 11

At a Glance

  • Industry leading robust self bunded tank range.
  • Product Range 250L | 600L | 1100L | 2250L | 3300L | 4500L | 5500L | 6600L | 8800L | 11000L
  • Fully certified to lift and move with liquid up to 6600L (BOX-6.6)
  • 4 x Way Forklift Pockets
  • Designed and approved for the storage and transport of diesel, petrol, lubricants and waste oil
  • Mild Steel Internal Tank and Wetted Parts - Heavy duty mild steel External tank
  • UN31AY Designed and Approved for the transport of dangerous goods up to and including 3300L
  • Designed and approved to AS1940 and AS1692 for static storage applications

  • GO Data Sheet BOX
  • GO FUEL BOX Self Bunded Tank Operations Manual
  • GO BOX 250L GA
  • GO BOX 600L GA
  • GO BOX 1100L GA
  • GO BOX 2250L GA
  • GO BOX 3300L GA
  • GO BOX 4500L GA
  • GO BOX 5500L GA.PDF
  • GO BOX 6600L GA
  • GO BOX 8800L GA
  • GO BOX 11000L GA
  • GO Industrial NZ Fluid Handling Complete Range Guide 2024

BOX Self Bunded Tank Product Range



Size

Safe Fill Level

L (mm)

W (mm)

H (mm)

Empty Weight

Full Weight
250L 240L 700 550 1248 230kg 470kg
600L 550L 1086 724 1270 405kg 955kg
660L 600L 1374 1086 810 488kg 1088kg
1100L 1000L 1374 1086 1270 597kg 1597kg
2250L 2000L 2294 1086 1270 888kg 2888kg
3300L 3000L 2294 1546 1270 1096kg 4096kg
4500L 4000L 2294 2084 1270 1331kg 5331kg
5500L 5000L 2496 2294 1270 1530kg 6530kg
6600L 6000L 2966 2294 1270 1823kg 7823kg
8800L 8000L 3916 2294 1270 2190kg N/A
11000L 10000L 4867 2294 1270 2662kg N/A



    FEATURES

    UN31AY APPROVAL

    • Self Bunded Tank with UN31A/Y approval for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III up to and including 3300L model

    LIFTING CERTIFICATION

    • The full range up to and including the 6600L model (BOX-6.6) has been engineered, tested and certified to be lifted full of fuel.

    FOUR WAY FORKLIFT POCKETS

    • The GO Box Self Bunded Tank range has been designed with 4 x way forklift pockets to allow for easy lifting, loading and transport within your operation

    MULTIPLE OUTLETS AND INLETS

    • The GO BOX has been designed to be able to be retrofitted with a huge array of dispensing, filtration, electronic fluids management and automatic tank gauging equipment.  Each tank is supplied with the following ports:
      • 1 x 25mm (1”) Suction Spear
      • 2 x 13mm (1/2”) Suction Spear
      • 3 x 40mm (1 1/2”) Return Point
      • 1 x Spare 80mm (3”) Socket
      • 4 x Spare 50mm (2”) Socket Top of Tank
      • 50mm (2”) Fill Point - Splash Fill Only
      • Additional 50mm (2”) hose entry and exit sockets on top of tank.

    SIZE RANGE

    • The GO BOX Self Bunded Tank range are available in a range of capacities, ideal for transportation by either truck or shipping container and suit most hydrocarbons storage and transport requirements.  Sizes include 250L | 660L | 1,100L | 2,250L | 3,300L | 4,500L | 5,500L | 6,600L | 8,800L | 11,000L

    AFFORDABLE QUALITY

    • The ultimate in quality at very affordable prices.

    STANDARDS

    • Our design meets strict quality standards, are PPG2 compliant and EU approved. Designed and approved to AS1692, AS1940-2017, UL142, ULC-S601, ULC-S603, BS799, UN31AY

    COLOUR

    • Colour is AS2700 "Colour Standards for General Purposes" N14 White

    STACKING

    • Can be stacked 3 high when empty and 2 high when full.

    EXTRA PROTECTION

    • 6,600L (BOX-6.6), 8,800L (BOX-8.8) and 11,000L (BOX-11) models are supplied with Overfill Protection Valve/Anti-Syphon Valve and Overfill Alarm Unit.

    BAFFLED

    • Fully Baffled - designed and approved to move with liquid in the tank.
    pagination here

GO BOX Self Bunded Tank Range

SKU: BOX

GO BOX Self Bunded Tank Range

$0.00 NZD
$0.00 NZD
Inclusive of GST.

Other payment options

The GO BOX Self Bunded Tank range is a comprehensive range of smaller capacity Self Bunded tanks designed for the transport and storage, dispensing, metering and filtration of Diesel, Petrol, Lubricants and Waste Oil. This economical, yet robust, range of Self Bunded Tanks are fully baffled, and feature fully certified crane lifting lugs, rated to lift tanks up to 6600L, full of product.



Complete Range Guide

From Fuel Tanks, EV Chargers, and down to all the parts you need — download the Complete Range Guide here.




          Customers also purchased

          iFUEL® Mobile - Fuel Management from your Smart Phone

          iFUEL Mobile

          $3,922.00 NZD
          $3,922.00 NZD

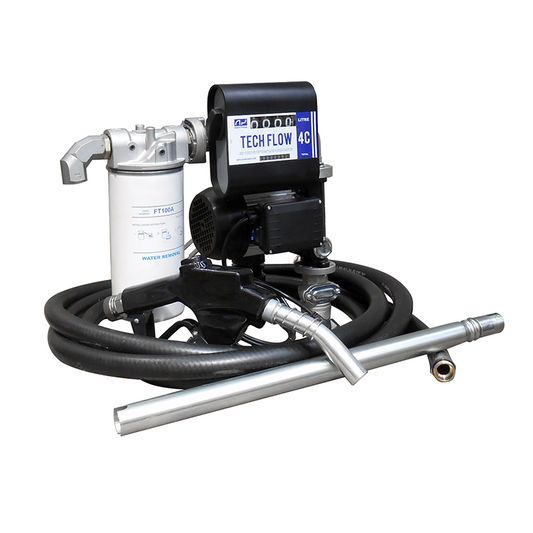

          PUMP 240V AC KIT 100lpm DT1004JAUS

          PUMP 240V AC KIT 100lpm DT1004JAUSM11

          $2,214.00 NZD
          $2,214.00 NZD

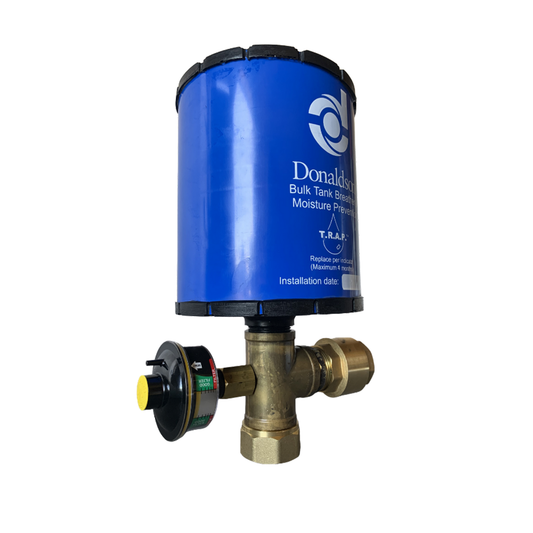

          Donaldson Tank Breather TRAP DN40 (1 1/2") F BSP P506159
